(27.126.AA[01]) - DRIVELINE MOUNTING, W/ AUXILIARY TRANSMISSION, 4040, 4540

Запчасти Case IH TITAN 4040 (27.126.AA[01]) - DRIVELINE MOUNTING, W/ AUXILIARY TRANSMISSION, 4040, 4540 (27) - REAR AXLE SYSTEM

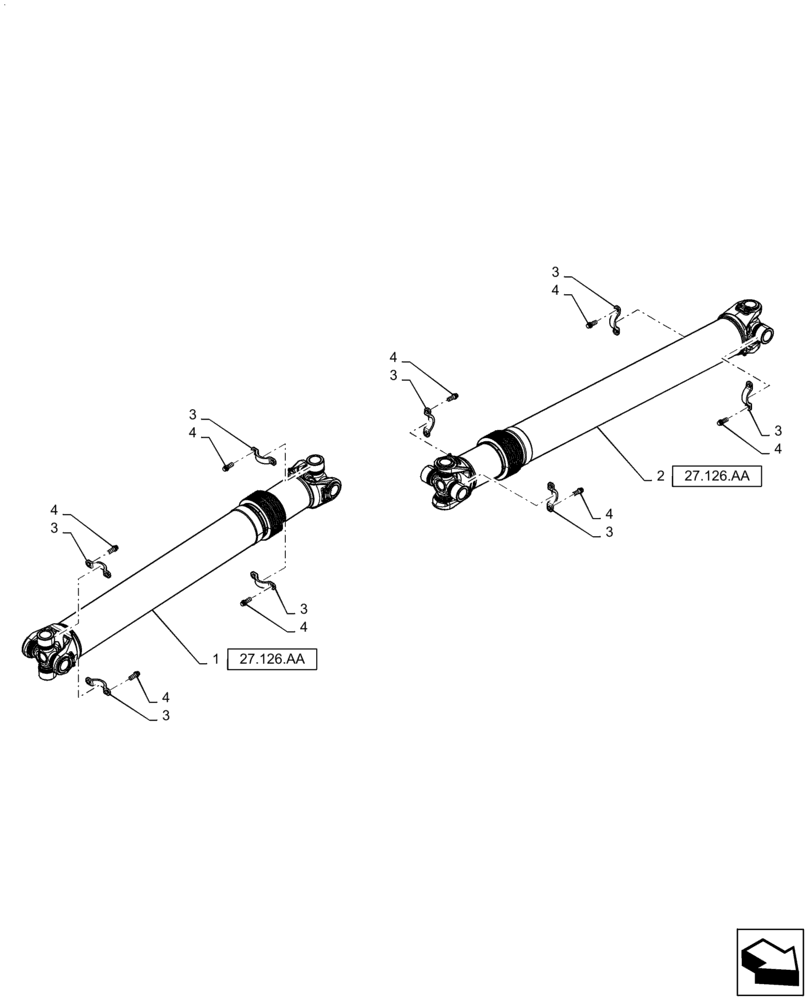

Схема запчастей Case IH TITAN 4040 - (27.126.AA[01]) - DRIVELINE MOUNTING, W/ AUXILIARY TRANSMISSION, 4040, 4540 (27) - REAR AXLE SYSTEM
3
1
3
4
3
4
27.126.aa
3
3
4
4
27.126.aa
2
4
3
3
4
4
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN323970

DRIVE SHAFT

536 Slip

1шт.

2

343803A1

DRIVE SHAFT

Slip

1шт.

3

BN326109

STRAP

Yoke, SPL170

8шт.

4

BN326110

BOLT

12PT, M12 x 32, Class 12.9 PHC

16шт.
