(50.200.AN[01]) - AIR CONDITIONING DRYER, 4040, 4540

Запчасти Case IH TITAN 4540 (50.200.AN[01]) - AIR CONDITIONING DRYER, 4040, 4540 (50) - CAB CLIMATE CONTROL

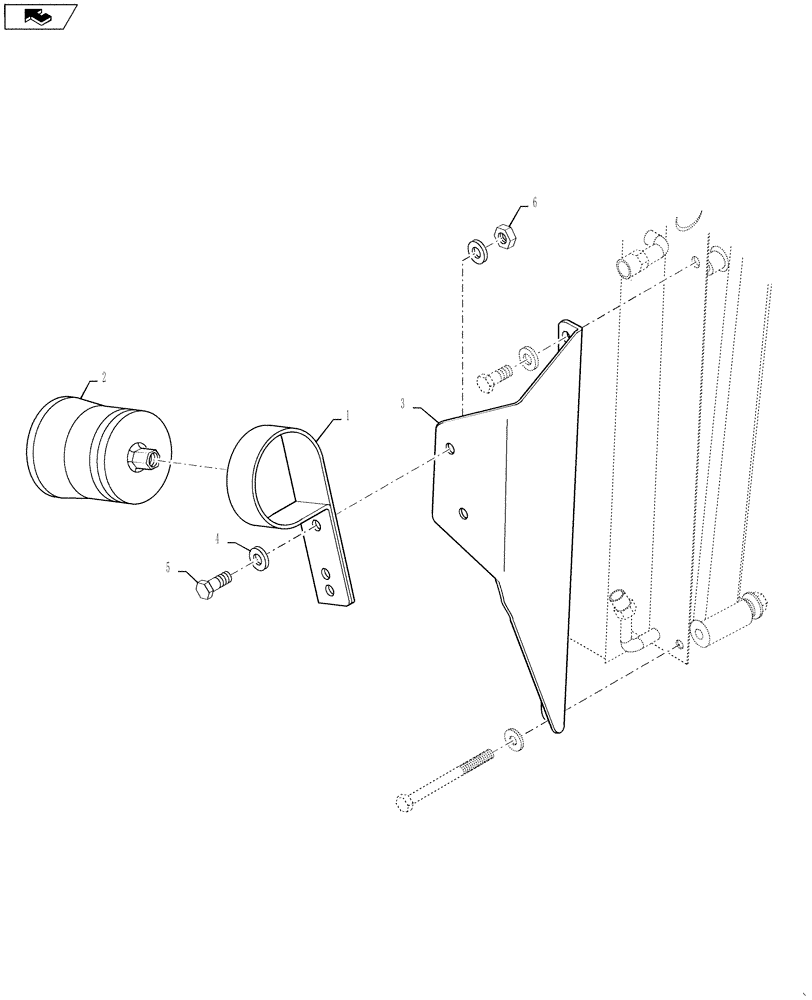

Схема запчастей Case IH TITAN 4540 - (50.200.AN[01]) - AIR CONDITIONING DRYER, 4040, 4540 (50) - CAB CLIMATE CONTROL
1
6
5
home
2
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D145289

SUPPORT

Receiver-Dryer

1шт.

2

295006A1

RECEIVER-DRYER

HFC-134a

1шт.

3

87267052

MOUNTING PLATE

Receiver-Dryer

1шт.

4

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

5

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

6

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

Выбрано товаров: 6
