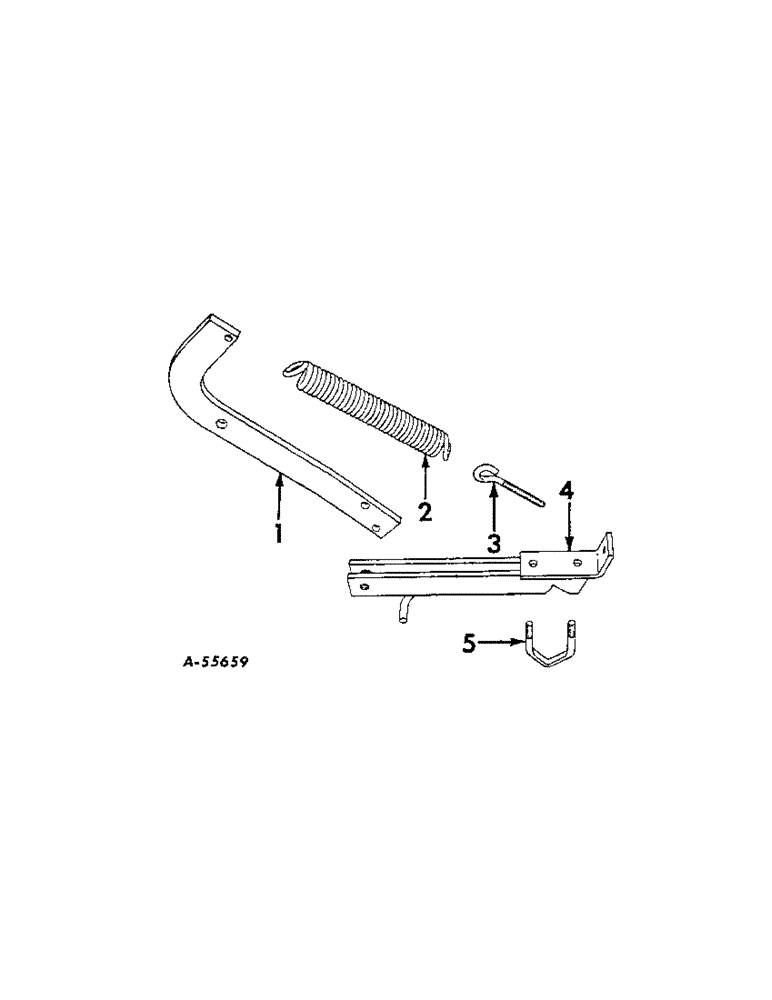

Запчасти Case IH 118 (J-06) - ATTACHING ARM SPRING LOADER APPLICATOR

1

526957R1

ARM, left pivot

1шт.

1

526958R1

ARM, right pivot

1шт.

BOLT, 5/8 x 2-1/4 in. mach

2шт.

NUT, 5/8 in.

2шт.

WASHER, 5/8 in. lock

2шт.

WASHER, 21/32 x 1-1/4 in. x 16 ga

2шт.

2

PO27

SPRING

pressure, 1-1/2 in. OD, lgth. 10 in. 34-1/2 coils

1шт.

3

PO15076

EYEBOLT, spring

1шт.

NUT, 3/8 in.

1шт.

WASHER, 13/32 x 1 in. x 16 ga

1шт.

4

526951R91

BRACKET, attaching

1шт.

5

526956R1

U-BOLT, attaching

1шт.

NUT, 1/2 in.

2шт.

WASHER, 1/2 in. lock

1шт.
