(04-009) - COMPS HYDRAULIC STABILIZER

Запчасти Case IH 610 (04-009) - COMPS HYDRAULIC STABILIZER Hydraulic Plumbing

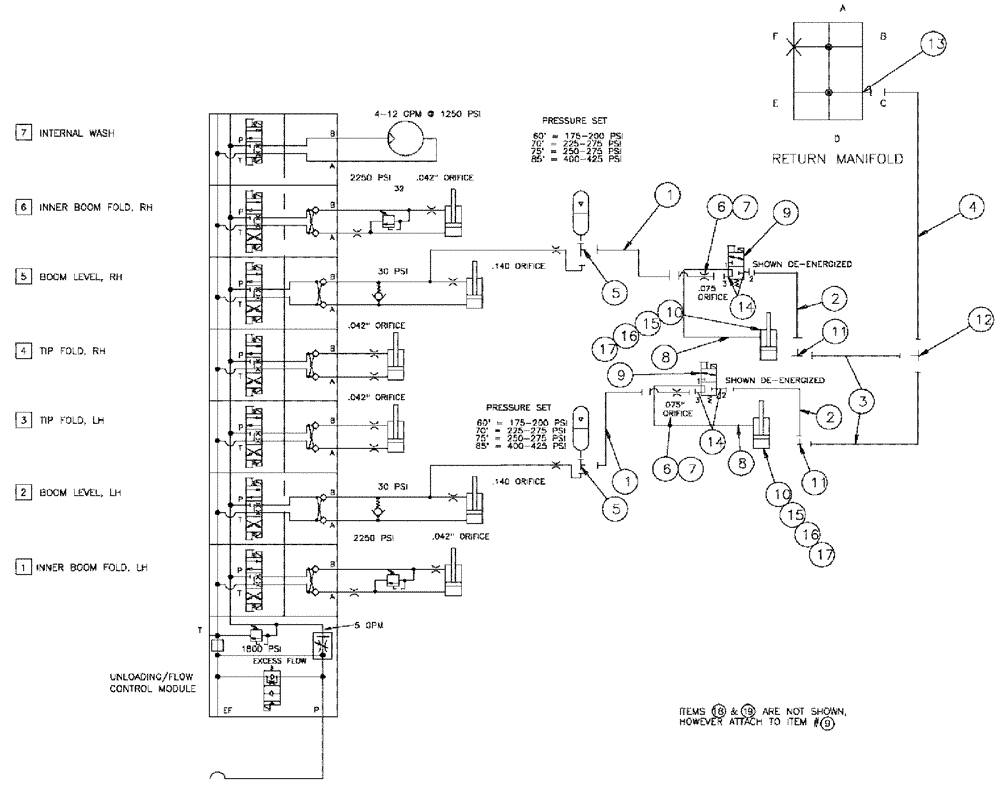

Схема запчастей Case IH 610 - (04-009) - COMPS HYDRAULIC STABILIZER Hydraulic Plumbing
4
13
16
14
7
1
15
11
12
5
1
17
2
6
2
15
1
9
17
8
10
7
16
3
14
5
8
9
6
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN313336

HOSE

6 X 30

2шт.

2

BN307823

HOSE ASSY.

2шт.

3

BN307804

HOSE ASSY.

2шт.

4

87265839

HOSE

6 X 215

1шт.

5

BN302435

TEE

11/16 -16 ORFS x 11/16 -16 ORFS Swivel

2шт.

6

BN305412

O-RING

FOR -6 FFOR

2шт.

7

87265840

ORIFICE

.075 - 6 Disc

2шт.

8

BN313038

FITTING

6MB-6MB

2шт.

9

BN29955

SOLENOID

Valve, Brake Actuator

2шт.

10

87266460

CYLINDER,Double Acting, 34.92mm Rod, 549.4mm Stroke

Hydraulic, 2.5 x 21.62 x 1.375

2шт.

87266460R

REMAN-HYD CYLINDER

610 - LIQUID SYSTEM APPLICATOR (9/99-12/11)

2шт.

87266460C

CORE-HYD CYLINDER

Return Number

1шт.

11

BN302583

FITTING

6MOR-6MOR-6MBX

2шт.

12

BN302512

FITTING

6MOR-6MOR-6MOR

1шт.

13

BN302647

FITTING

6MOR-8MB

1шт.

14

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

4шт.

15

439-11264

HEADED PIN,3/4" x 4"

4шт.

16

87041

COTTER PIN,1/4" x 1 3/4"

4шт.

17

87265832

WASHER

1" NYLON MDS

8шт.

18

87268446

KIT

HARNESS, ADAPTOR FLYBAC

2шт.

19

245483C1

ELEC CONNECTOR,Male, 2 Pin

plastic 2c receptacle

2шт.
