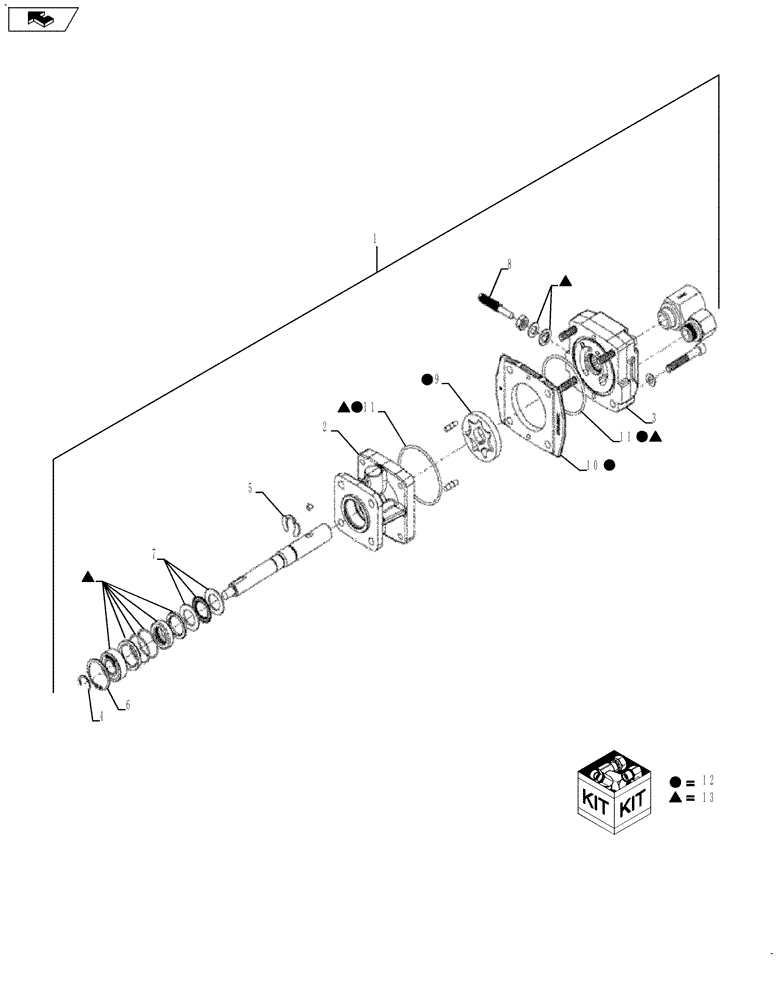

/ / / / / / / / (04-016) - HM4 MOTOR BREAKDOWN
Запчасти Case IH 610 (04-016) - HM4 MOTOR BREAKDOWN Hydraulic Plumbing
13
12
11
12
home
13
12
13
9
6
7
10
12
1
8
12
3
12
5
13
11
4
2
13
13
1
84341717
HYDRAULIC MOTOR
Hyd, HM4
1шт.
2
84364089
BODY
1шт.
3
84364090
END PLATE
1шт.
4
6057
SNAP RING
Retaining
1шт.
5
87578620
SNAP RING
Retaining
1шт.
6
BN98259
RING
Retaining
1шт.
7
87577677
BEARING ASSY
1шт.
8
87577683
VALVE STEM
Valve stem
1шт.
9
87515551
GEROTOR
1шт.
10
87515550
HOUSING
HM4 Gerotor housing
1шт.
11
87515547
O-RING
2шт.
12
BN53770
REPAIR KIT
Includes ref 9 - 11
1шт.
13
84325648
SEAL KIT
1шт.
