(03-023) - VALVE, 5 BANK, WATERMAN, "BEFORE SERIAL # 6700"

Запчасти Case IH 610 (03-023) - VALVE, 5 BANK, WATERMAN, "BEFORE SERIAL # 6700" Invalid section

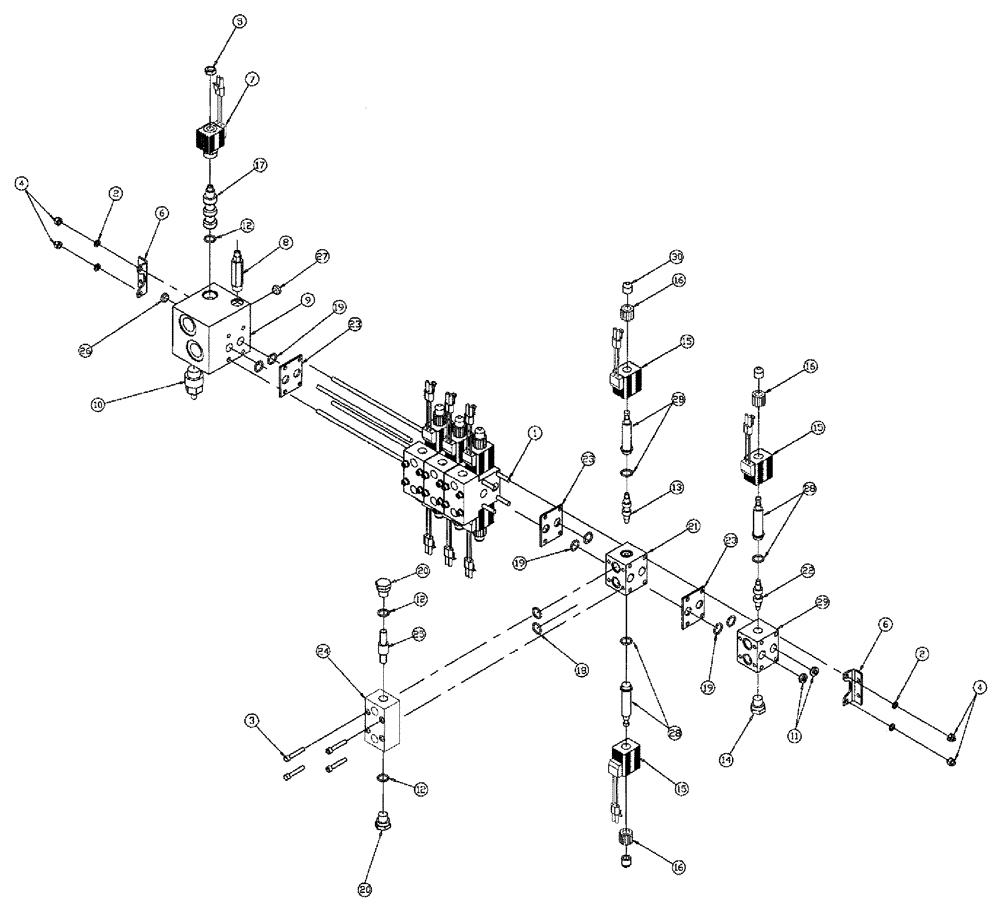

Схема запчастей Case IH 610 - (03-023) - VALVE, 5 BANK, WATERMAN, "BEFORE SERIAL # 6700" Invalid section
12
15
19
28
6
16
169
23
28
29
3
14
1
10
20
23
4
12
15
16
7
12
20
11
22
8
19
23
28
4
9
25
21
30
24
2
19
6
16
25
17
20
3
15
27
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN318151

ROD THRD 1/4-20 X 14 3/8

4шт.

2

BN50138

WASHER,1/4", SS

4шт.

3

86986510

SCREW,Hex, 1/4" - 20 x 1 3/4"

1/4-20 X 1.75, SHCS, SS

16шт.

4

280129

NUT,1/4"-20

8шт.

5

BN98218

NUT

UNLOADER VALV #29345

1шт.

6

BN66713

MOUNTING PLATE

BRACKET

2шт.

7

BN318090

COIL

12V DC DOUBLE LEAD

1шт.

8

BN318088

VALVE PRESSURE RELIE

1шт.

9

BN318089

HYDRAULIC VALVE

BLOCK

1шт.

10

86986518

FLOW DIVIDER

CONTROL

1шт.

11

BN446048

PLUG

HEX ORING, 6,9/16-18

2шт.

12

BN98219

SEAL KIT

For Cartridge

9шт.

13

BN98220

SPOOL

WTRMN VALVE #29345

4шт.

14

BN318139

PLUG

SUB ASSY

1шт.

15

BN98222

COIL

W/Wire Lead & Pack-End

9шт.

16

BN98223

NUT

Waterman Valve #29345

9шт.

17

BN318091

SOLENOID VALVE

1шт.

18

BN98225

O-RING

Stacking Valve #29345

8шт.

19

BN98226

O-RING

Sandwich Valve #29345

10шт.

20

BN300970

CHECK VALVE,3/4" - 16

100 Lb. Wtrmn

8шт.

20a

BN98219

SEAL KIT

For Cartridge (P/N BN300970)

1шт.

21

BN98325

BLOCK

Valve (Center) 29345

4шт.

22

BN318138

SPOOL

WTRMN VALVE

1шт.

23

86986508

PLATE

Backing, Anodized

5шт.

24

BN98677

BLOCK

For 29345A (Dual)

4шт.

25

BN98679

CHECK VALVE

Piston, Dual, 29345

4шт.

26

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

27

9841223

PLUG,1-1/16" - 12 ORB

1шт.

28

BN318147

TUBE

ASSY

9шт.

29

BN318152

HYDRAULIC VALVE

BODY END

1шт.

30

86986509

CAP

vinyl, valve bank

9шт.
