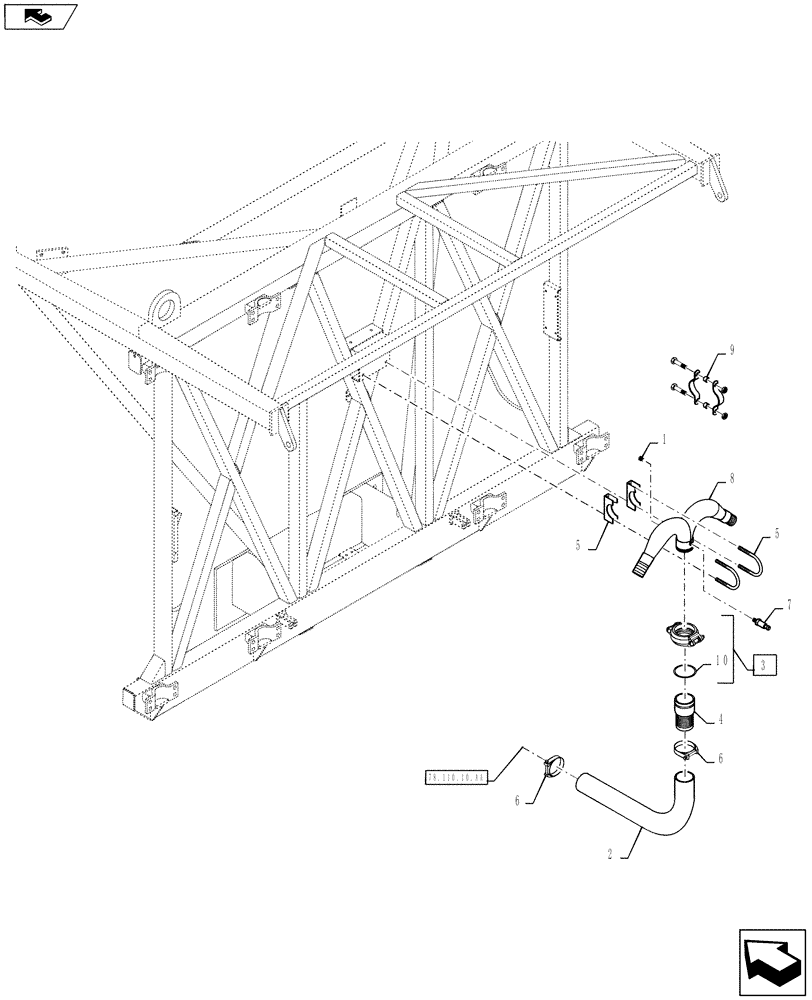

Запчасти Case IH 610 (78.110.14.AA) - CENTER MAST LIQUID PLUMBING (78) - SPRAYING

1

BN73553

PLUG

3/4" NPT, Poly

1шт.

2

BN326025

HOSE,3.00" ID BULK

EPDM, Cut to Length of 12.5"

1шт.

3

BN2399444

CLAMP,80mm ID

3" Pipe, Includes Seal Ref 10

1шт.

4

BN2399445

COUPLING

3" Grooved x 3" Hose Barb

1шт.

5

BN2400371

CLAMP

3-1/2" Dia, 3/8" Nuts Are Included With Clamp

2шт.

6

BN2403395

CLAMP

T-Bolt Band 3.56"

2шт.

7

84201517

TRANSDUCER

Boom Pressure

1шт.

8

BN8195272

MANIFOLD

Product Rams Horn

1шт.

9

87269820

SPACER

Nylon, Used Between Clamps On Frame To Prevent Over-Tightening of Hose

4шт.

10

BN2399444-001

GASKET

3" Pipe

1шт.
