(78.110.16.AA) - NOZZLE PLUMBING, 70 BOOM, 30" SPACING, 3 SECTION CONTROL

Запчасти Case IH 610 (78.110.16.AA) - NOZZLE PLUMBING, 70 BOOM, 30" SPACING, 3 SECTION CONTROL (78) - SPRAYING

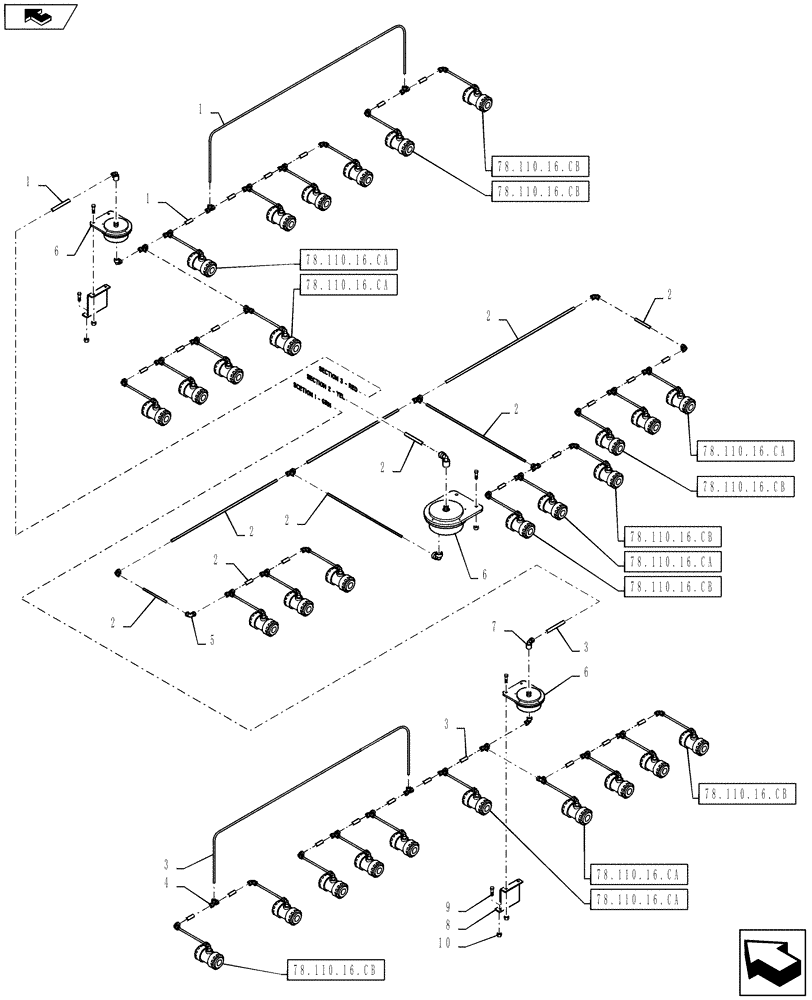

Схема запчастей Case IH 610 - (78.110.16.AA) - NOZZLE PLUMBING, 70 BOOM, 30" SPACING, 3 SECTION CONTROL (78) - SPRAYING
2
home
2
2
3
2
8
1
3
10
7
3
2
6
4
9
6
2
78.110.16.cb
78.110.16.cb
78.110.16.cb
78.110.16.ca
78.110.16.cb
78.110.16.ca
78.110.16.ca
78.110.16.ca
78.110.16.ca
78.110.16.cb
78.110.16.cb
78.110.16.cb
78.110.16.ca
2
6
2
1
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN2393051

TUBE,1/4" X 500' BULK, SAE J844, RED

Air, Synflex 1/4" Red, Bulk, 66' Required For This Boom Configuration

1шт.

2

BN2393052

TUBE,1/4" X 100' BULK, SAE J844, YELLOW

Air, Synflex 1/4" Yellow, Bulk, 20' Required For This Boom Configuration

1шт.

3

BN2393053

TUBE,1/4" X 100' BULK, SAE J844, GREEN

Air, Synflex 1/4" Green, Bulk, 66' Required For This Boom Configuration

1шт.

4

BN2399408

UNION TEE

1/4" OD Tube, Push Lock Fitting

7шт.

5

BN2399409

90 ELBOW

1/4" OD Tube, Push Lock Fitting

4шт.

6

BN2395255

SHUT-OFF VALVE

Boom Spray Control Valve, Quick Release, Poly

3шт.

7

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

6шт.

8

87270557

MOUNTING PLATE

Boom Shut-Off Valve

2шт.

9

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

10шт.

10

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

10шт.
