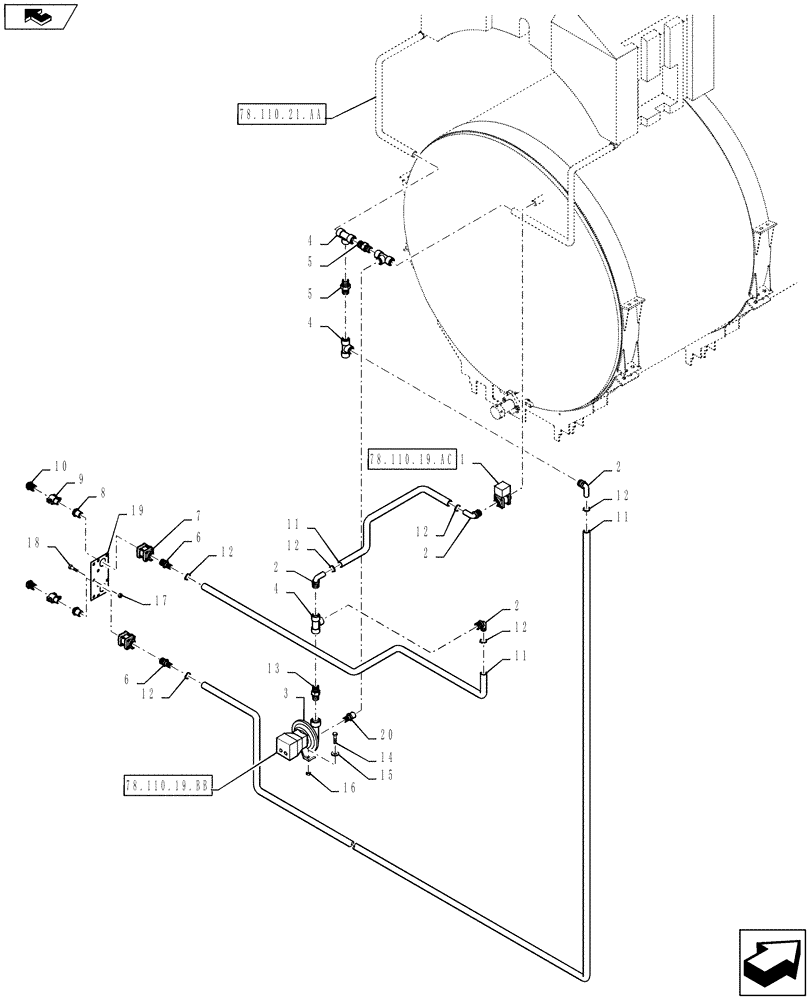

Запчасти Case IH 610 (78.110.19.AB) - INTERNAL RINSE PLUMBING (78) - SPRAYING

1

87389559

VALVE

Electric, 1" Ball

1шт.

See Fig 78.110.19.AC For Service Parts

1шт.

2

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

4шт.

3

87393970

PUMP

Rinse, Hydraulic

1шт.

See Fig 78.110.19.BB For Service Parts

1шт.

4

BN73629

TEE

1" Poly Pipe

3шт.

5

BN73648

NIPPLE

1" Short Poly Pipe

2шт.

6

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

2шт.

7

BN2395215

HYDRAULIC VALVE

Ball 1" Poly

2шт.

8

BN53665

BUSHING

1" x 3/4", Poly

2шт.

9

BN2393335

COUPLING

3/4" Cam x 3/4" NPT, Poly

2шт.

10

BN2403684

FITTING,3/4" Adapter x 3/4" Garden Hose Female Thread

Garden Hose

2шт.

11

BN2393068

TUBE

1" Suction Style K

22шт.

12

87487834

CLAMP,0.81" - 1.5"

#16, Stainless Steel

6шт.

13

BN73656

NIPPLE,1-1/4" Male NPT x 1" Male NPT, Poly

1-1/4" NPT x 1" NPT, Poly

1шт.

14

87342769

BOLT

3/8-16 X 1-1/2, G5, DOR

2шт.

15

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

16

87343970

NUT,3/8"-16, G8, DOR

2шт.

17

BN55359

LOCK NUT,1/4"-20, SS

3шт.

18

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

3шт.

19

BN8195371

SHEET

Washdown Valve Mount

1шт.

20

BN73741

NIPPLE

1-1/2" NPT x 1" NPT, Poly

1шт.
