(35.220.05) - PRODUCT PUMP CONTROL VALVE MOUNTING

Запчасти Case IH 610 (35.220.05) - PRODUCT PUMP CONTROL VALVE MOUNTING (35) - HYDRAULIC SYSTEMS

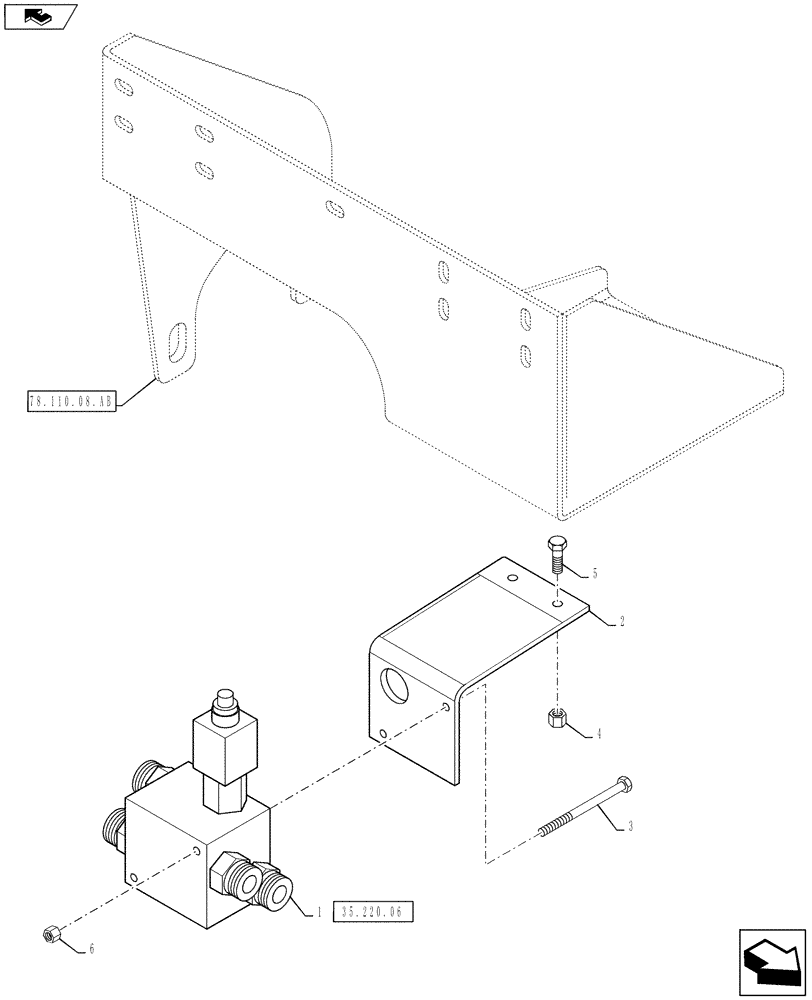

Схема запчастей Case IH 610 - (35.220.05) - PRODUCT PUMP CONTROL VALVE MOUNTING (35) - HYDRAULIC SYSTEMS
4
2
home
35.220.06
3
6
78.110.08.ab
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

343993A1

HYDRAULIC VALVE

Product Pump Control Valve, Pulse Width Modulation

1шт.

See Fig 35.220.06 For Service Parts

1шт.

2

87265367

MOUNTING PLATE

Product Pump Valve

1шт.

3

BN320110

BOLT

5/16-18 X 4.5, Stainless Steel

2шт.

4

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

5

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

6

BN55361

NUT,5/16"-18, Nylon, Stainless

2шт.
