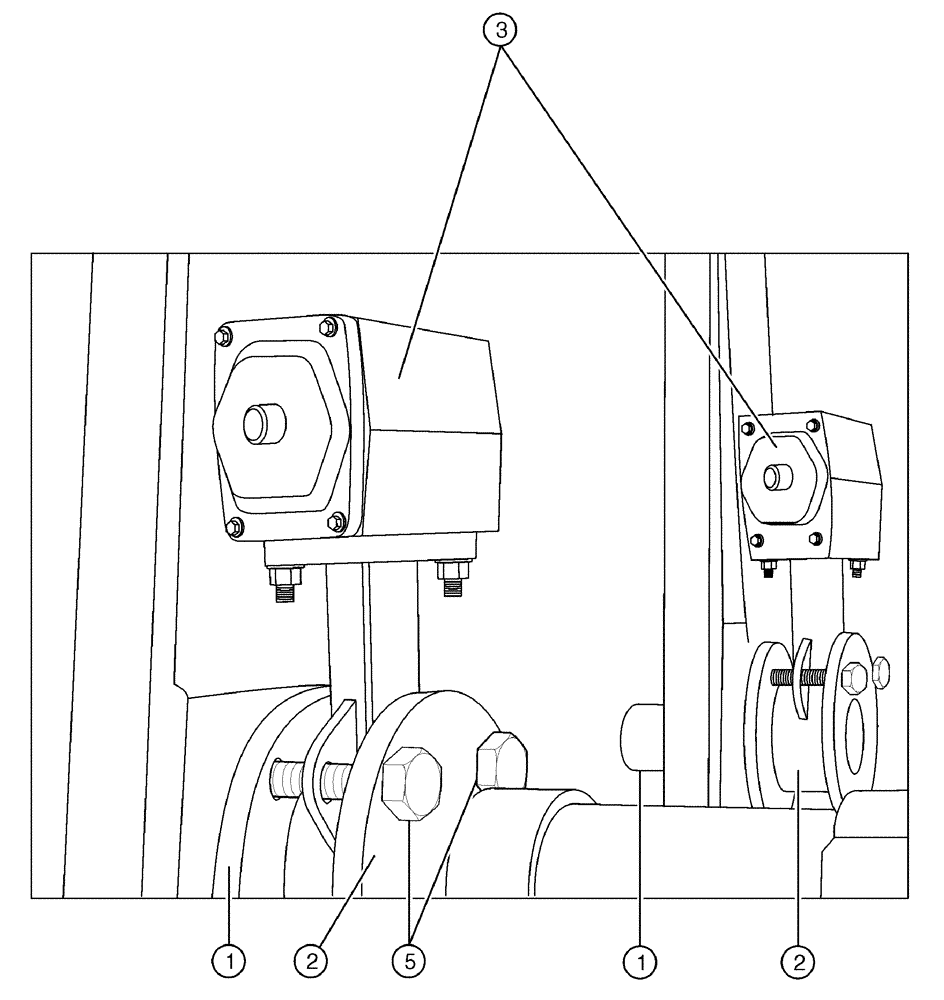

Запчасти Case IH FLX610 (03-008) - BOOM SPRAY VALVE ASSEMBLY (09) - BOOMS

1

BN8195028

FLANGE

2" HB IN

1шт.

2

BN8195296

FLANGE

2" MPT IN

1шт.

3

NS

NOT SERVICED

2" Actuator Valve Assembly

1шт.

BN2399401

ADAPTER

Male, 1/4" Tube

2шт.

Service Parts For Ref. 3

1шт.

87268421

HYDRAULIC VALVE

Butterfly, Bray, With Actuator

1шт.

Service Parts For Ref. 3

1шт.

4

85700693

NUT,5/8" - 11, Gr C

4шт.

Not Shown

1шт.

5

86977740

BOLT,Hex, 5/8" - 11 x 4", Gr 5

4шт.
