(03-016) - VALVE, 7 BANK, WATERMAN

Запчасти Case IH FLX610 (03-016) - VALVE, 7 BANK, WATERMAN (09) - BOOMS

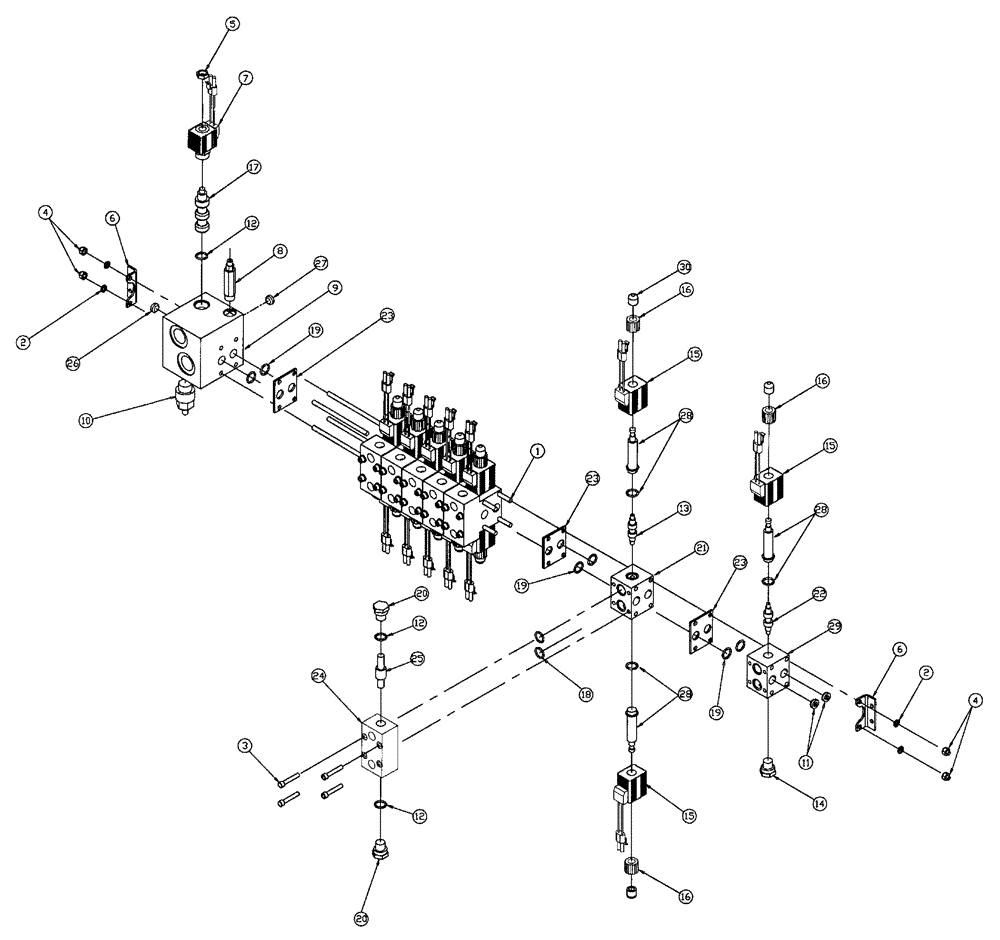

Схема запчастей Case IH FLX610 - (03-016) - VALVE, 7 BANK, WATERMAN (09) - BOOMS
12
4
6
2
10
19
16
3
12
20
23
14
28
28
27
1
28
15
20
19
2
4
7
25
22
19
13
23
16
23
15
11
5
18
17
30
9
12
26
15
16
6
8
29
24
21
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN318150

ROD

Thrd 1/4-20 Unc X 18''

4шт.

2

BN50138

WASHER,1/4", SS

4шт.

3

86986510

SCREW,Hex, 1/4" - 20 x 1 3/4"

1/4-20 X 1.75, SHCS, SS

24шт.

4

280129

NUT,1/4"-20

8шт.

5

BN98218

NUT

Unloader Valve #29345

1шт.

6

BN66713

MOUNTING PLATE

Bracket

2шт.

7

BN318090

COIL

12V DC Double Lead

1шт.

8

BN318088

VALVE PRESSURE RELIE

1шт.

9

BN318089

HYDRAULIC VALVE

Block

1шт.

10

86986518

FLOW DIVIDER

Control

1шт.

11

BN446048

PLUG

Hex Oring,-6,9/16-18

2шт.

12

BN98219

SEAL KIT

For Cartridge

12шт.

13

BN98220

SPOOL

Waterman Valve #29345

6шт.

14

BN318139

PLUG

Sub assembly

1шт.

15

BN98222

COIL

W/Wire Lead & Pack-End

13шт.

16

BN98223

NUT

Waterman Valve #29345

13шт.

17

BN318091

SOLENOID VALVE

1шт.

18

BN98225

O-RING

Stacking Valve #29345

12шт.

19

BN98226

O-RING

Sandwich Valve #29345

14шт.

20

BN300970

CHECK VALVE,3/4" - 16

100 Lb. Wtrmn

12шт.

BN98219

SEAL KIT

For Cartridge (P/N BN300970)

1шт.

21

BN98325

BLOCK

Valve (Center) 29345

6шт.

22

BN318138

SPOOL

Waterman Valve

1шт.

23

86986508

PLATE

Backing, Anodized

7шт.

24

BN98677

BLOCK

For 29345A (Dual)

6шт.

25

BN98679

CHECK VALVE

Piston, Dual, 29345

6шт.

26

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

27

9841223

PLUG,1-1/16" - 12 ORB

1шт.

28

BN318147

TUBE

Assembly

13шт.

29

BN318152

HYDRAULIC VALVE

Body End

1шт.

30

86986509

CAP

vinyl, valve bank

13шт.
