(C-29[A]) - LIQUID CHEMICAL FERTILIZERS, AUTOMATIC SHUT-OFF CONTROLS, 1959 TO 1965

Запчасти Case IH LIQUID (C-29[A]) - LIQUID CHEMICAL FERTILIZERS, AUTOMATIC SHUT-OFF CONTROLS, 1959 TO 1965

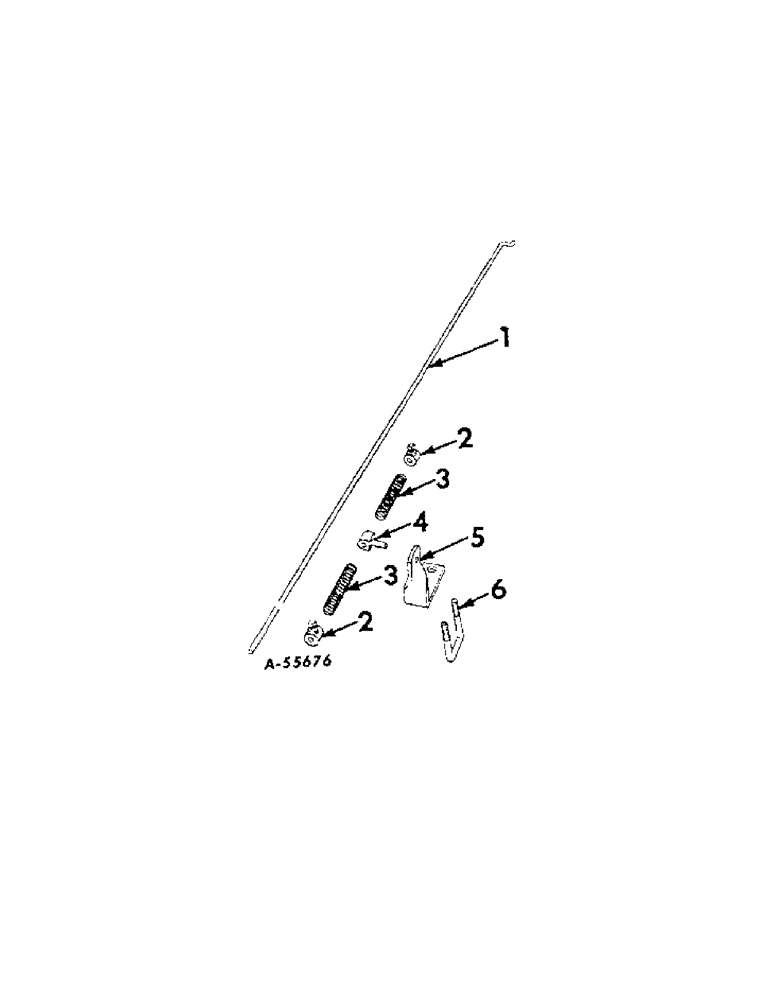

Схема запчастей Case IH LIQUID - (C-29[A]) - LIQUID CHEMICAL FERTILIZERS, AUTOMATIC SHUT-OFF CONTROLS, 1959 TO 1965
4
6
2
3
5
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

527005R1

LINK, shut off valve

1шт.

2

514547R11

COLLAR CLAMP

COLLAR W/SET SCREW, shut-off valve link

1шт.

SCREW, 5/16 x 1/2 cup-pt sq-hd set

1шт.

3

2067A

SPRING

shut-off valve link

1шт.

PIN, 1/8 x 3/4 in. self-opening cotter

1шт.

WASHER, 13/32 x 7/8 in. x 16 ga

1шт.

4

PO2437

PIVOT

SWIVEL, shut-off valve link

1шт.

5

523580R2

BRACKET, shut-off valve link

1шт.

6

PO25141

U-BOLT, shut-off valve link bracket

1шт.

NUTS, 3/8 in.

2шт.
