(C-27[A]) - LIQUID CHEMICAL FERTILIZERS, TANK CRADLE AND STRAPS 1959 TO 1965

Запчасти Case IH LIQUID (C-27[A]) - LIQUID CHEMICAL FERTILIZERS, TANK CRADLE AND STRAPS 1959 TO 1965

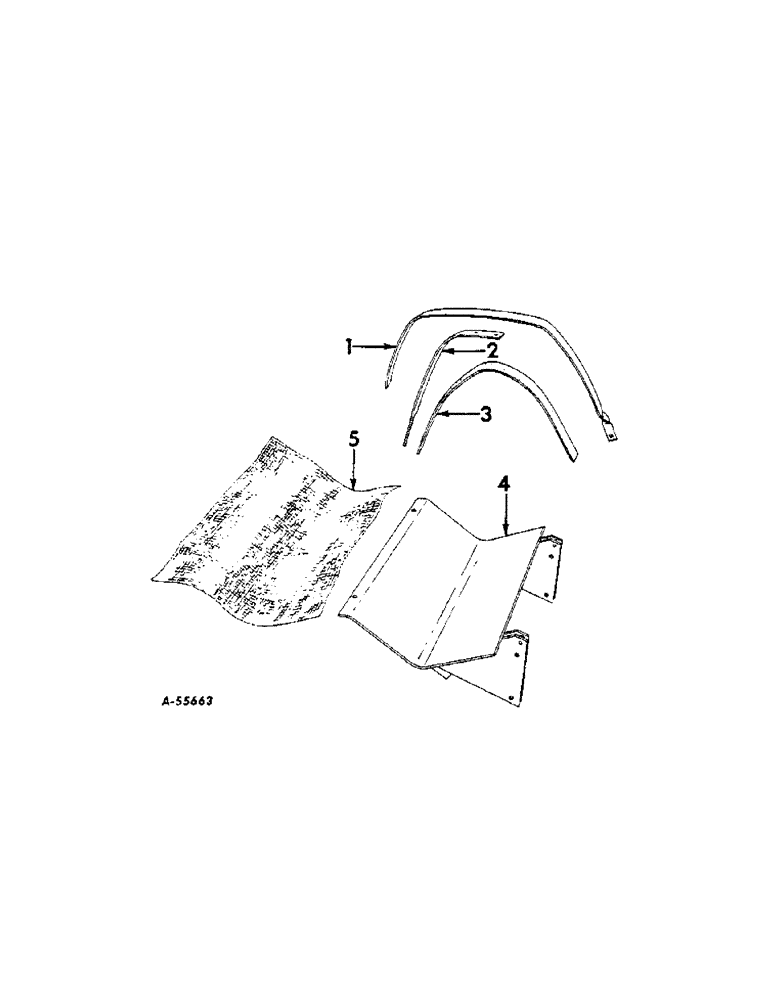

Схема запчастей Case IH LIQUID - (C-27[A]) - LIQUID CHEMICAL FERTILIZERS, TANK CRADLE AND STRAPS 1959 TO 1965
4
2
5
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

526987R1

STRAP, tank

1шт.

BOLT, 1/4 x 5/8 in. crg

2шт.

NUT, 1/4 in.

2шт.

WASHER, 1/4 in. lock

2шт.

2

526985R11

STRAP

tank adjusting

1шт.

NUT, 7/16 in.

1шт.

WASHER, 7/16 in. lock

1шт.

3

525790R1

PAD, tank top

1шт.

4

526967R11

CRADLE, tank

1шт.

BOLT, 3/8 x 1-3/4 in. mach

2шт.

NUT, 3/8 in.

2шт.

WASHER, 3/8 in. lock

2шт.

5

526980R1

PAD, tank bottom

1шт.
