(C-11[A]) - LIQUID CHEMICAL FERTILIZERS, LINE STRAINER

Запчасти Case IH LIQUID (C-11[A]) - LIQUID CHEMICAL FERTILIZERS, LINE STRAINER

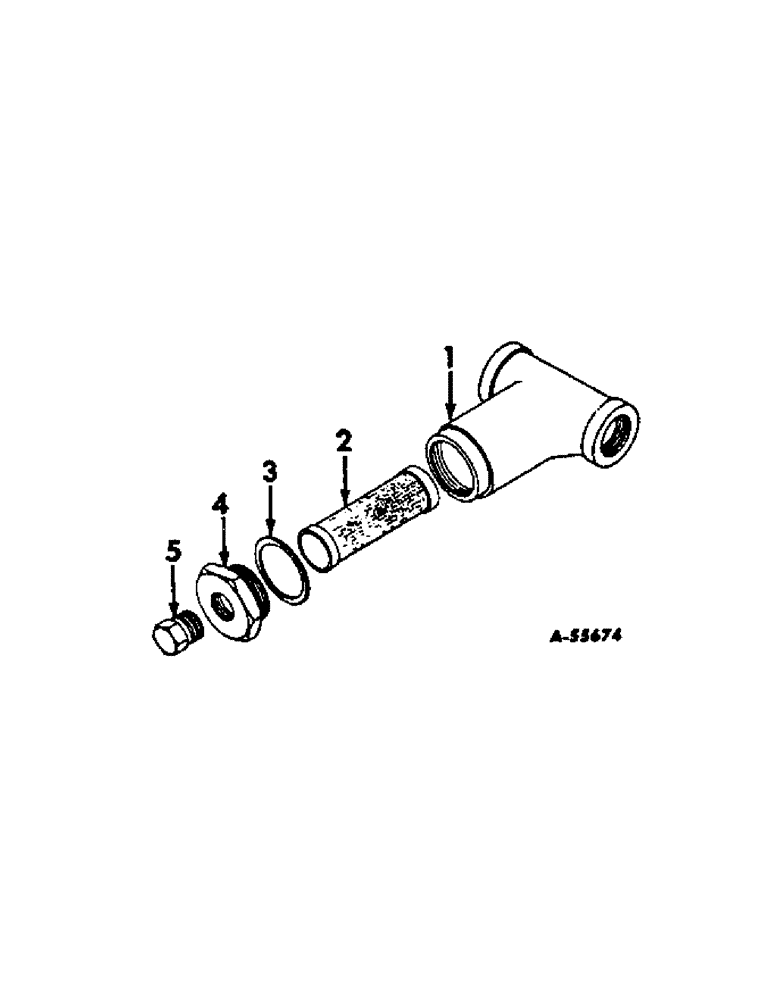

Схема запчастей Case IH LIQUID - (C-11[A]) - LIQUID CHEMICAL FERTILIZERS, LINE STRAINER
1
5
4
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

(Not serviced seperately, order assembly 526789R91)

1шт.

2

526790R91

SCREEN, 50 mesh stainless steel

1шт.

3

526792R1

GASKET, asbestos

1шт.

4

526791R1

CAP, aluminum, electrofilmed

1шт.

5

(Not serviced separately, order assembly 526789R91)

1шт.
