(C-20) - LIQUID CHEMICAL FERTILIZERS, PRESSURE RELIEF VALVE

Запчасти Case IH LIQUID (C-20) - LIQUID CHEMICAL FERTILIZERS, PRESSURE RELIEF VALVE

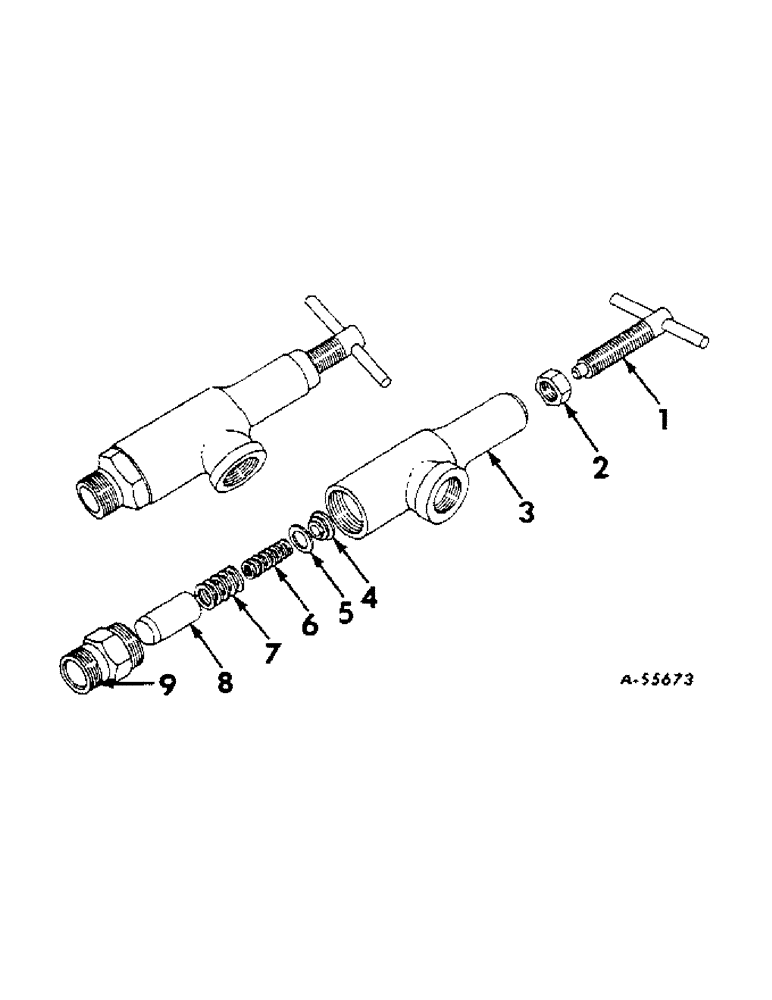

Схема запчастей Case IH LIQUID - (C-20) - LIQUID CHEMICAL FERTILIZERS, PRESSURE RELIEF VALVE
8
3
6
9
1
2
5
7
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

526788R91

VALVE ASSEMBLY, pressure relief, consists of all items listed below

1шт.

1

486148R1

SCREW, adjusting stainless and aluminum

1шт.

486147R1

PIN, handle rod

1шт.

2

486149R1

NUT, aluminum lock

1шт.

3

486150R1

BODY, aluminum

1шт.

4

486151R1

VALVE, spring retainer

1шт.

5

WASHER, hycar gasket, order kit 486152R91

1шт.

6

486155R1

SPRING, stainless steel inside

1шт.

7

486156R1

SPRING, stainless steel outside

1шт.

8

SEAL, aluminum guide, order kit, 486152R91

1шт.

9

486157R1

ADAPTER, aluminum inlet

1шт.

486152R91

KIT, seat and washer, consists of ref. 5 and 8

1шт.
