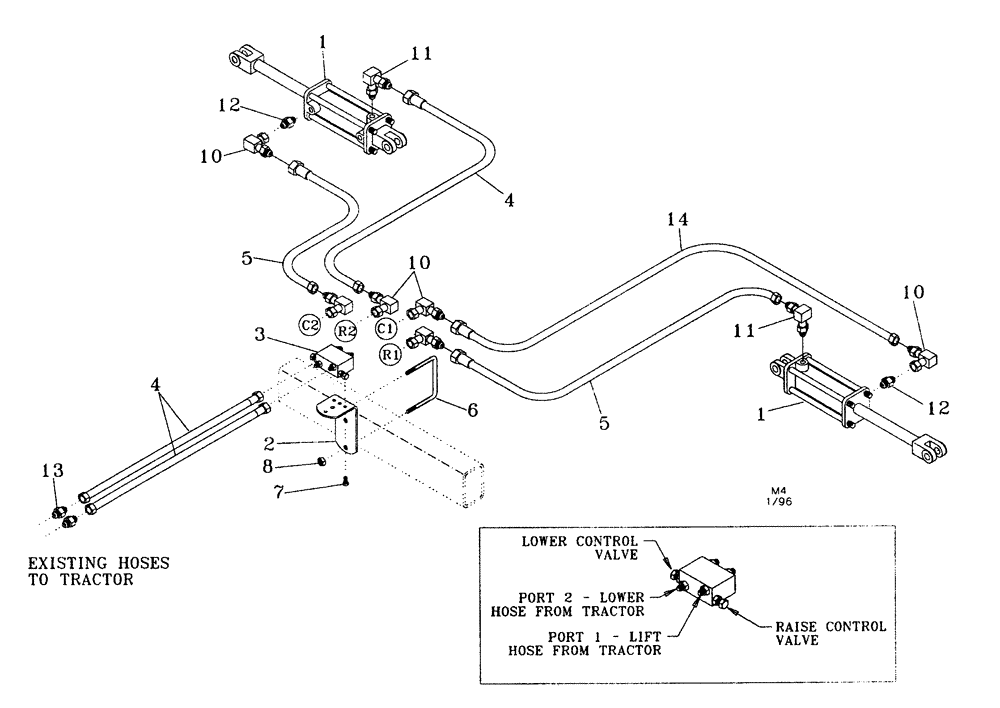

Запчасти Case IH 4300 (35.100.06) - ROW MARKER OPTION 4300 ONLY (08) - HYDRAULICS

1

25325161

HYDRAULIC CYLINDER,Double Acting, 31mm Rod, 406.4mm Stroke

2-1/2" x 16"

2шт.

2

04670050

BAR ASSY.

Valve

1шт.

3

25405620

VALVE

Sequence

1шт.

4

25600423

HYDRAULIC HOSE,0.25" ID x 184.00", SAE 100R17

3шт.

5

25600425

HYDRAULIC HOSE,0.25" ID x 204.00", SAE 100R17

2шт.

6

87427168

U-BOLT

5/8" x 6" x 5-1/2"

1шт.

7

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

NC

2шт.

8

425-1010

NUT,5/8"-11, G5

NC

2шт.

10

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

JICM x JICF

6шт.

11

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

JICM x SAEM

2шт.

12

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

JICM x SAEM

2шт.

13

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

JICM x SAEM

2шт.

14

25600436

HYDRAULIC HOSE,0.25" ID x 84.00", SAE 100R17

1шт.
