(75.100.02) - AIR TUBE ASSEMBLY

Запчасти Case IH 9000 (75.100.02) - AIR TUBE ASSEMBLY (75) - SOIL PREPARATION

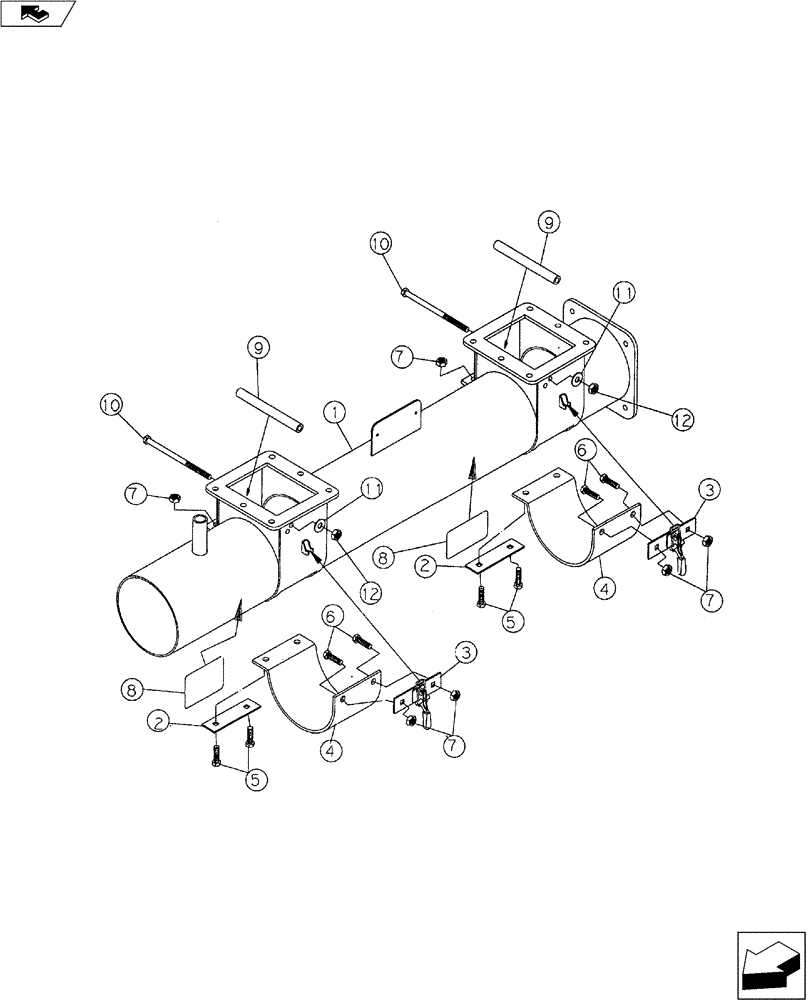

Схема запчастей Case IH 9000 - (75.100.02) - AIR TUBE ASSEMBLY (75) - SOIL PREPARATION
11
5
11
10
3
7
4
12
1
6
5
12
7
7
10
8
2
9
2
6
7
4
9
3
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

05401600

RIGID TUBE

Includes Items Ref. 2 - 8

1шт.

2

05401609

Flat

2шт.

3

05401225

LATCH

Weldment

2шт.

4

05401608

FLAP

Rubber

2шт.

5

16105039

5/16" x 1" NC Carriage, Stainless

4шт.

6

16105038

5/16" x 3/4" NC Carriage, Stainless

4шт.

7

14090508

5/16" NC Hex., Stainless

8шт.

8

18534328

Warning Sign

2шт.

9

05401615

Tube, 5/8" O.D. x 0.385" I.D.

2шт.

10

16900629

BOLT

3/8" x 7" NC Hex., Stainless

2шт.

11

17906002

3/8" Washer, Stainless

2шт.

12

14090608

SPECIAL NUT

3/8" NC Hex., Stainless

2шт.
