(35.105.02) - LIQUID FERTILIZER PUMP HOUSING

Запчасти Case IH 920 (35.105.02) - LIQUID FERTILIZER PUMP HOUSING (35) - HYDRAULIC SYSTEMS

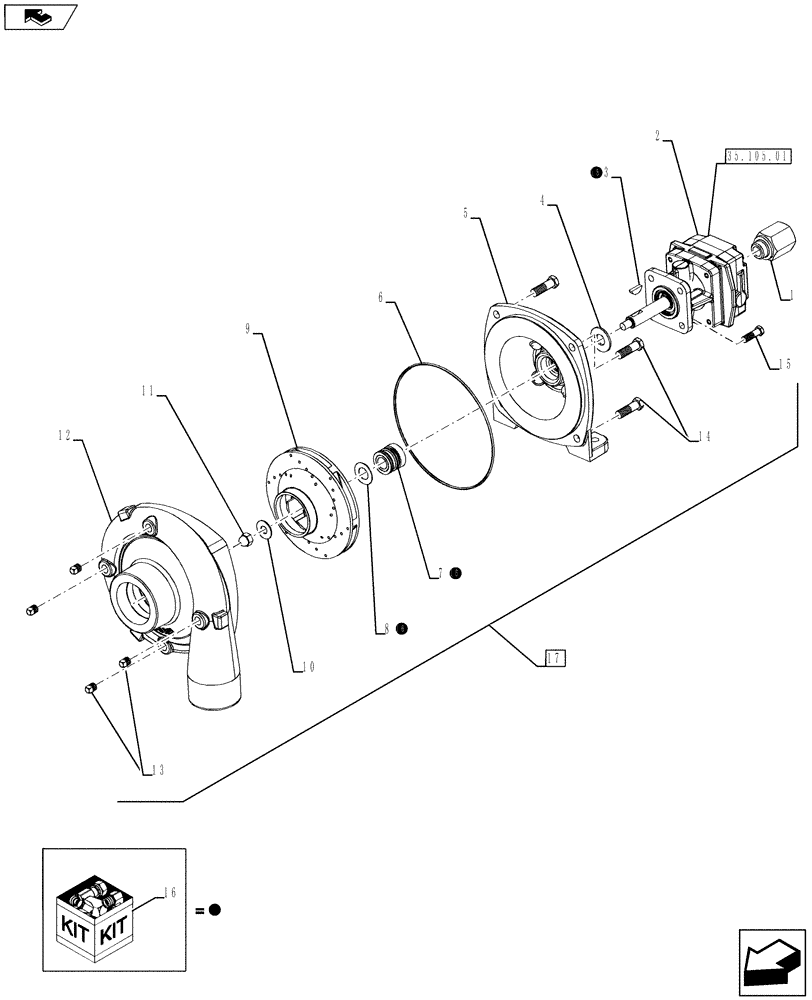

Схема запчастей Case IH 920 - (35.105.02) - LIQUID FERTILIZER PUMP HOUSING (35) - HYDRAULIC SYSTEMS
3
home
11
14
16
1
16
8
35.105.01
16
9
6
16
10
5
17
2
12
13
4
15
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84543442

VALVE

1шт.

2

84543183

HYDRAULIC MOTOR

1шт.

3

NSS

NOT SOLD SEPARAT

Included In 16

1шт.

4

4194

RING

1шт.

5

4192

FLANGE

1шт.

6

87577652

O-RING

1шт.

7

NSS

NOT SOLD SEPARAT

Included In 16

1шт.

8

NSS

NOT SOLD SEPARAT

Included In 16

1шт.

9

87610600

IMPELLER

1шт.

10

84272048

WASHER

1шт.

11

4199

NUT

1шт.

12

87610599

CASING

1шт.

13

4187

DRAIN PLUG

4шт.

14

84270018

BOLT

4шт.

15

84270010

BOLT

4шт.

16

BN311826

SEAL KIT

Pump Seal Kit, Standard Also Includes 3, 7-8

1шт.

17

84396847

HYDRAULIC PUMP

Incl 1 - 15

1шт.
