(78.110.01) - TANK ASSY 1650 GALLON

Запчасти Case IH 920 (78.110.01) - TANK ASSY 1650 GALLON (78) - SPRAYING

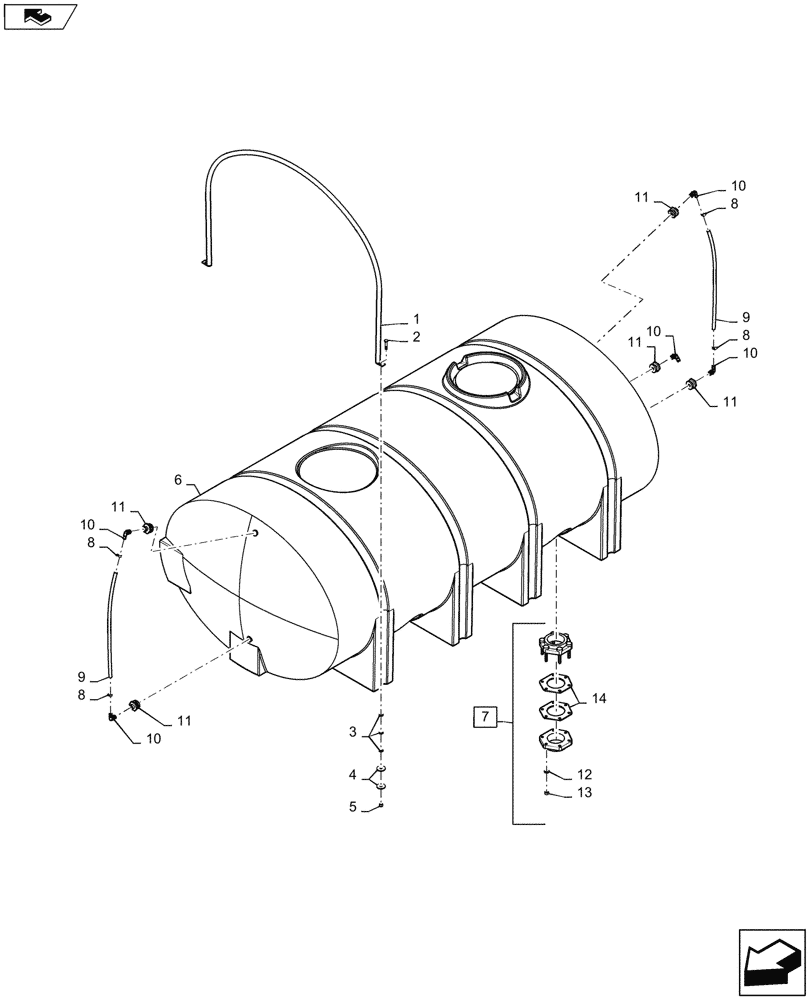

Схема запчастей Case IH 920 - (78.110.01) - TANK ASSY 1650 GALLON (78) - SPRAYING
11
9
6
8
home
12
10
11
1
14
2
4
13
5
7
9
8
10
8
10
8
11
10
11
11
10
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84387823

FRAME

4шт.

2

88693

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 5

8шт.

3

17411011

WASHER,17.2mm ID x 32mm OD x 4.37mm Thk

Flat, 1.265" O.D. X 0.695" I.D. X 0.160" Thick, Zinc Dichromate Plated

24шт.

4

84579774

WASHER

Special Square Washer, 0.719" I.D. X 2.50" Square X 0.375" Thick

16шт.

5

85700693

NUT,5/8" - 11, Gr C

8шт.

6

84257473

TANK

1650 Gallon

1шт.

7

87609768

BULKHEAD,3" x 3" Threaded EPDM Flange

1шт.

8

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

4шт.

9

25631206

TUBE

2шт.

10

34306061

PIPE FITTING,3/4" NPT x 3/4" Hose Barb, 90 Degree

5шт.

11

406148A1

FITTING

5шт.

12

NSS

NOT SOLD SEPARAT

Included in 7, 0.375" Lock Washer, SS

6шт.

13

NSS

NOT SOLD SEPARAT

Included in 7, 0.375" Lock Nut, SS

6шт.

14

87609769

GASKET

2шт.
