(78.110.04) - INNER WING FRAME PLUMBING (INJECTION OPTION)

Запчасти Case IH 920 (78.110.04) - INNER WING FRAME PLUMBING (INJECTION OPTION) (78) - SPRAYING

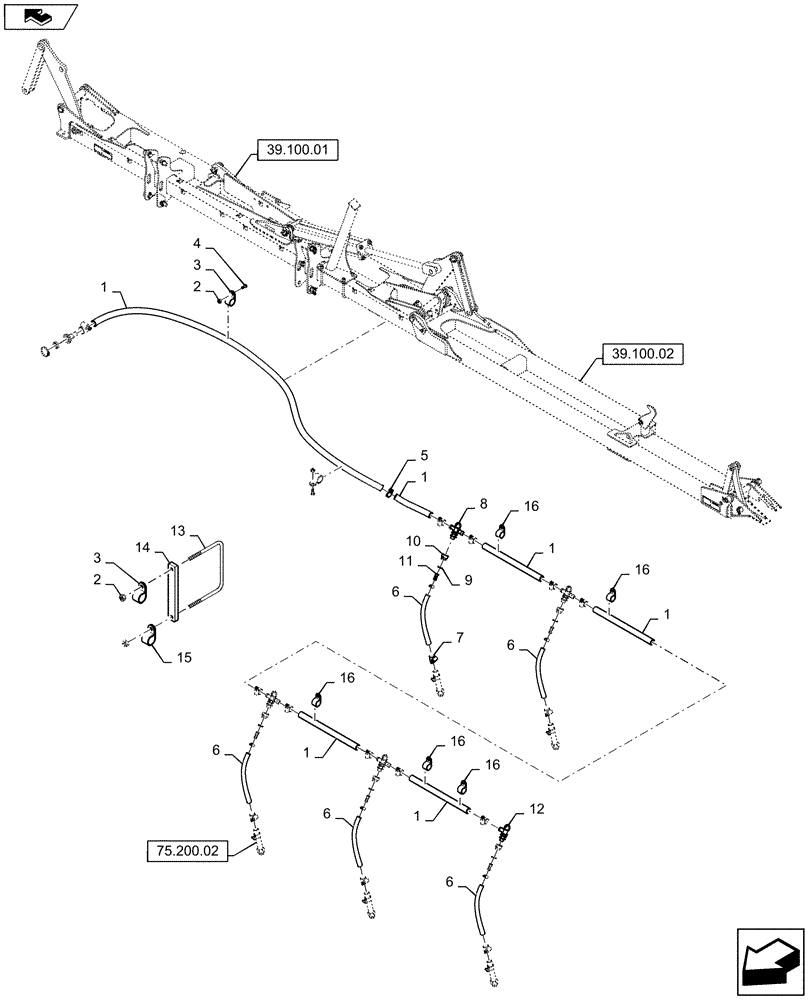

Схема запчастей Case IH 920 - (78.110.04) - INNER WING FRAME PLUMBING (INJECTION OPTION) (78) - SPRAYING
7
16
16
1
12
6
6
2
13
1
9
14
16
1
8
2
11
39.100.01
3
3
1
6
6
75.200.02
1
4
home
15
10
16
39.100.02
16
5
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84487405

HOSE

Hose, 1.00" Dia EPDM (Cut To Length)

1шт.

2

88902

NUT,3/8"-16

3шт.

3

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

4

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

3шт.

5

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

10шт.

6

47387421

HOSE

Hose, 0.75"DIA EPDM (Cut To Length)

1шт.

7

244358

HOSE CLIP,0.44" - 0.78"

10шт.

8

84517676

NOZZLE

4шт.

9

84516876

GASKET

5шт.

10

84516875

CAP

5шт.

11

47388214

NOZZLE

5шт.

12

84516871

NOZZLE

1шт.

13

16309101

U-BOLT,3/8" - 16, Square, 4" W x 6" L

BOLT "U"

5шт.

14

84397057

PLATE

5шт.

15

22510700

HOSE CLAMP,15.86mm

1/2" Double Clip

3шт.

16

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

5шт.
