(78.110.06) - MAIN FRAME PLUMBING (KNIFE OPTION)

Запчасти Case IH 920 (78.110.06) - MAIN FRAME PLUMBING (KNIFE OPTION) (78) - SPRAYING

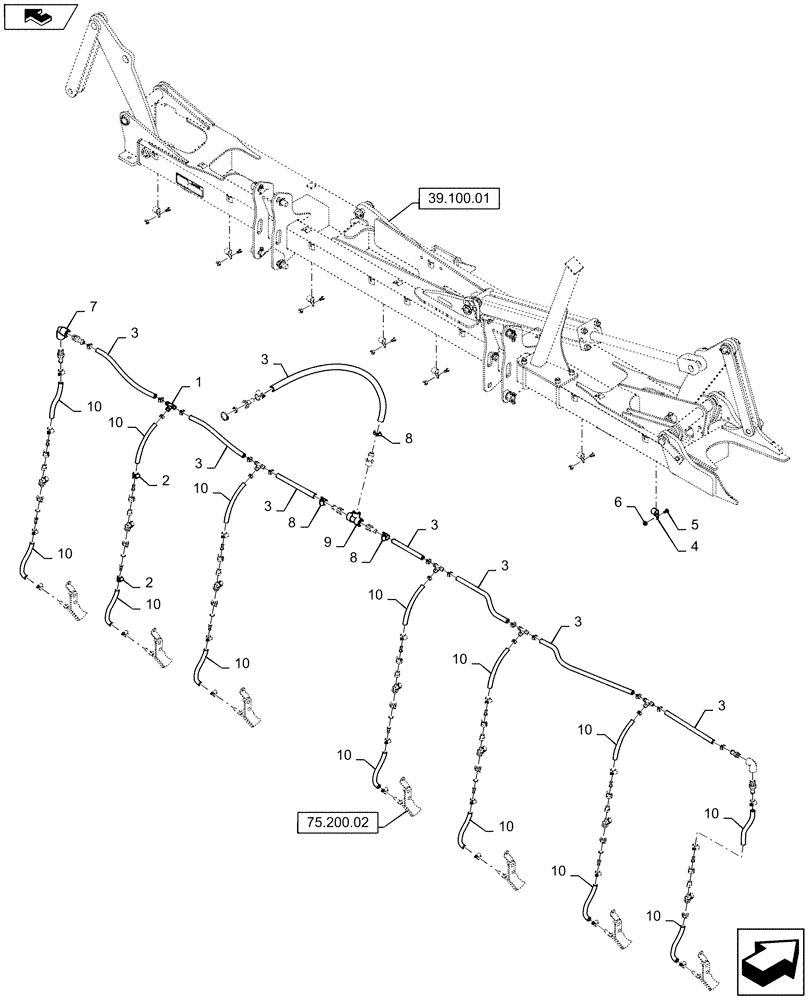

Схема запчастей Case IH 920 - (78.110.06) - MAIN FRAME PLUMBING (KNIFE OPTION) (78) - SPRAYING
10
3
3
5
10
10
home
39.100.01
10
10
3
3
9
1
3
10
10
2
10
7
10
8
10
6
3
10
10
4
75.200.02
3
2
8
10
10
8
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47388258

NOZZLE,Tee, 0.75" Injector

5шт.

2

244358

HOSE CLIP,0.44" - 0.78"

Hose, 1.0" Dia EPDM (Cut To Length)

2шт.

3

47453859

HOSE,Hose, 0.75" Dia. EPDM, (Cut To Length)

1шт.

4

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

8шт.

5

84198529

CARRIAGE BOLT

0.375" X 2.00" Full Thread, GR5 ZND

8шт.

6

88902

NUT,3/8"-16

8шт.

7

47388206

NOZZLE,3/4" Injector

2шт.

8

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

15шт.

9

34308005

TEE,1" NPT x 1" NPT x 1" NPT, Poly

1шт.

10

47387421

HOSE

Hose, 0.50" Reinf., (Cut To Length)

1шт.
