(78.110.07) - INNER WING FRAME PLUMBING (KNIFE OPTION)

Запчасти Case IH 920 (78.110.07) - INNER WING FRAME PLUMBING (KNIFE OPTION) (78) - SPRAYING

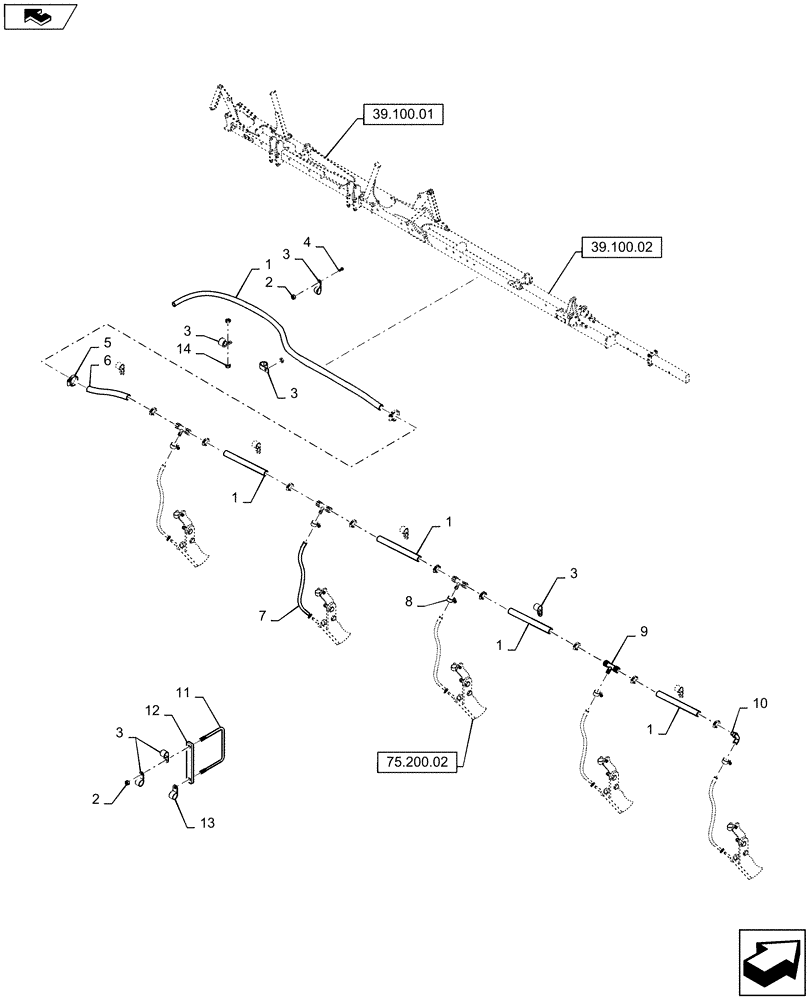

Схема запчастей Case IH 920 - (78.110.07) - INNER WING FRAME PLUMBING (KNIFE OPTION) (78) - SPRAYING
11
1
3
3
3
75.200.02
13
1
8
5
3
39.100.02
3
home
2
4
1
9
39.100.01
7
10
2
14
6
1
1
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47453859

HOSE,Hose, 0.75" Dia. EPDM, (Cut To Length)

1шт.

2

88902

NUT,3/8"-16

8шт.

3

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

8шт.

4

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

0.375" X 2.00" Full Thread, GR5 ZND

1шт.

5

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

9шт.

6

25661225

HOSE

Hose, 0.75", EPDM, (Cut To Length)

1шт.

7

47387421

HOSE

Hose, 0.50', Reinf., (Cut To Length)

1шт.

8

244358

HOSE CLIP,0.44" - 0.78"

10шт.

9

47388258

NOZZLE,Tee, 0.75" Injector

4шт.

10

47388206

NOZZLE,3/4" Injector

1шт.

11

16309101

U-BOLT,3/8" - 16, Square, 4" W x 6" L

BOLT "U"

5шт.

12

84397057

PLATE

5шт.

13

22510700

HOSE CLAMP,15.86mm

3шт.

14

9628503

NUT,3/8"-16, G5

2шт.
