(78.110.08) - OUTER WING FRAME PLUMBING (KNIFE OPTION)

Запчасти Case IH 920 (78.110.08) - OUTER WING FRAME PLUMBING (KNIFE OPTION) (78) - SPRAYING

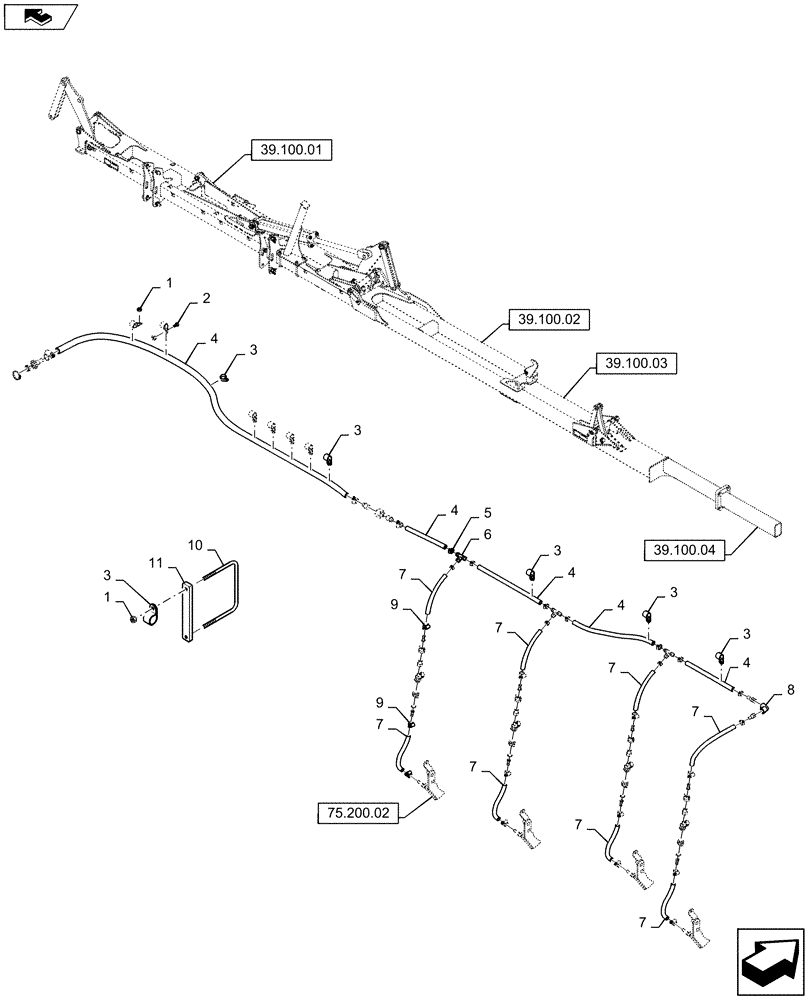

Схема запчастей Case IH 920 - (78.110.08) - OUTER WING FRAME PLUMBING (KNIFE OPTION) (78) - SPRAYING
1
7
3
3
2
4
7
39.100.01
6
4
7
39.100.03
11
7
3
7
3
7
3
39.100.02
home
7
5
1
8
4
4
39.100.04
7
75.200.02
9
4
10
3
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

88902

NUT,3/8"-16

7шт.

2

84198529

CARRIAGE BOLT

0.375" X 2.00" Full Thread, GR5 ZND

1шт.

3

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

12шт.

4

47453859

HOSE,Hose, 0.75" Dia. EPDM, (Cut To Length)

1шт.

5

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

7шт.

6

47388258

NOZZLE,Tee, 0.75" Injector

3шт.

7

47387421

HOSE

1шт.

8

47388206

NOZZLE,3/4" Injector

1шт.

9

244358

HOSE CLIP,0.44" - 0.78"

8шт.

10

16309101

U-BOLT,3/8" - 16, Square, 4" W x 6" L

BOLT "U"

4шт.

11

84397057

PLATE

4шт.
