/ / / / / / / (A01[15A]) - RIPPER AND UNDERCARRIAGE ASSEMBLY
Запчасти Case IH AUSTOFT (A01[15A]) - RIPPER AND UNDERCARRIAGE ASSEMBLY

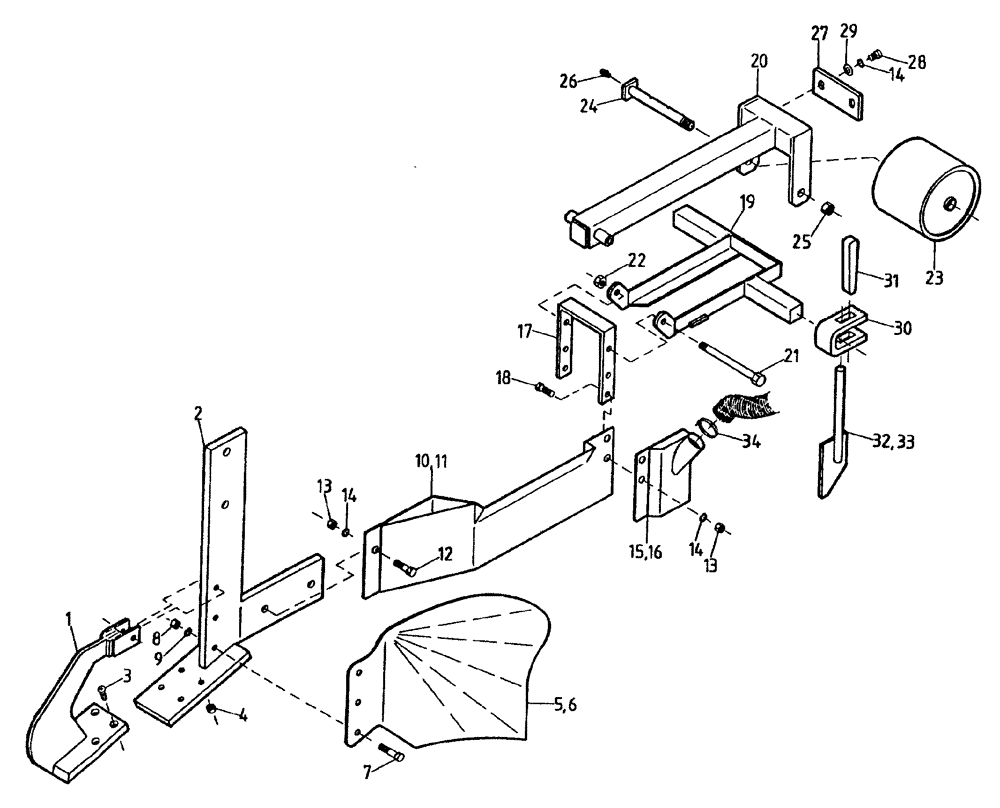

![Схема запчастей Case IH AUSTOFT - (A01[15A]) - RIPPER AND UNDERCARRIAGE ASSEMBLY](https://www.partsell.ru/storage/images/caseih/707206.png)
1
25
11
14
17
34
18
6
15
13
19
4
21
31
32
28
13
27
29
8
20
22
12
24
2
7
3
33
5
9
16
14
23
26
10
30
14
1
87239257
PLOW BOTTOM ASSY
STUMP jump for ripper
1шт.
2
87241175
PLOW BOTTOM ASSY
RIPPER
1шт.
3
FD112035
SCREW
4шт.
4
NC112000
NUT
4шт.
5
42-06112
PLOW BOTTOM ASSY
BOARD mould (LHS)
1шт.
6
42-06115
PLOW BOTTOM ASSY
BOARD mould (RHS)
1шт.
7
FM112075
BOLT
3шт.
8
NA112000
NUT
3шт.
9
WB120000
WASHER
3шт.
10
42-06774
BOARD
side (LHS)
1шт.
11
42-06775
BOARD
side (RHS)
1шт.
12
FM116060
BOLT
2шт.
13
NA116000
NUT
6шт.
14
WB160000
SPRING WASHER
8шт.
15
42-06698
FOOT fertilizer (LHS)
1шт.
16
42-06697
FOOT fertilizer (RHS)
1шт.
17
42-06279
PIVOT for yoke assy.
1шт.
18
FM116045
BOLT
4шт.
19
87239274
ARM tiller
1шт.
20
42-06262
ARM trailing
1шт.
21
87238388
PIN
1шт.
22
NC120000
NUT
1шт.
23
42-06277
WHEEL
1шт.
24
87239351
AXLE
PIN
1шт.
25
NC124000
NUT
1шт.
26
00152827
LUBE NIPPLE
grease
2шт.
27
42-06613
SCRAPPER wheel
1шт.
28
FM116025
BOLT
2шт.
29
WA160000
WASHER
2шт.
30
00700238
CLAMP
2шт.
31
00700239
WEDGE
2шт.
32
42-06340
BLADE (LHS)
1шт.
33
42-06342
FAN BLADE
BLADE (RHS)
1шт.
34
00135784
HOSE CLAMP
2шт.
