(A01-07) - BELT DRIVE

Запчасти Case IH AUSTOFT (A01-07) - BELT DRIVE Mainframe & Functioning Components

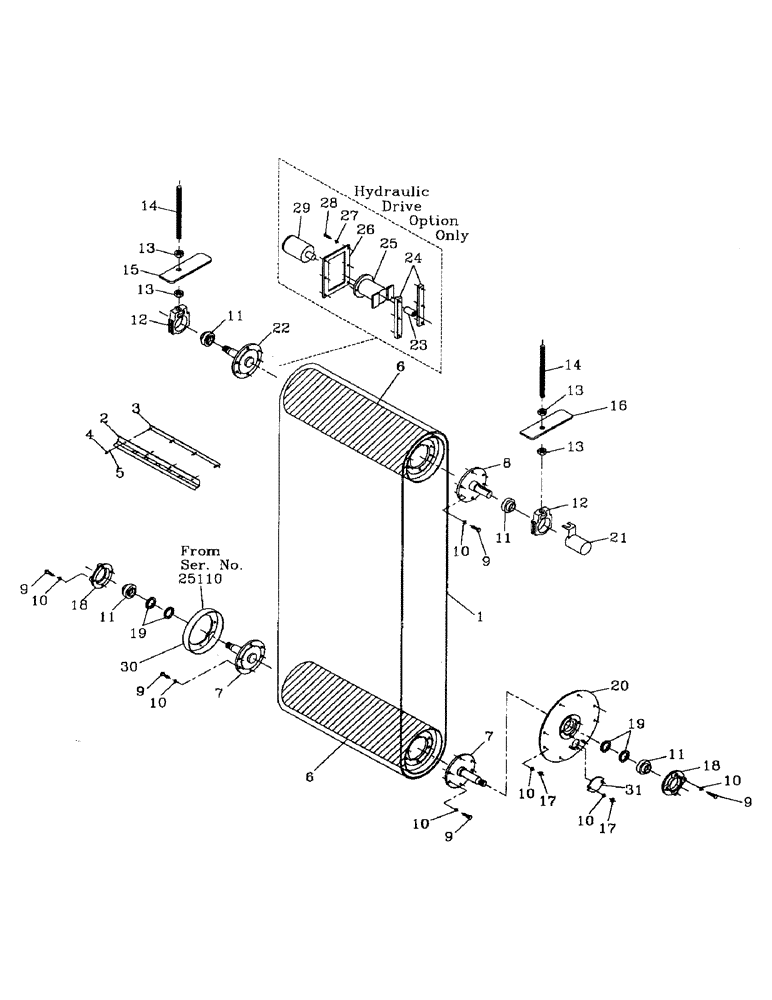

Схема запчастей Case IH AUSTOFT - (A01-07) - BELT DRIVE Mainframe & Functioning Components
5
27
29
18
4
10
21
13
13
23
11
15
17
18
26
19
9
24
31
11
9
12
6
1
14
16
9
17
28
8
11
10
10
10
10
9
10
25
2
3
9
13
6
14
19
30
22
7
12
7
10
20
13
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87239518

BELT,3720.00 mm L

3720.00 mm L

4шт.

2

87254396

STEEL FLIGHT

FLIGHT

4шт.

3

87252630

BACK PLATE

BACKING PLATE

4шт.

4

NC106000

LOCK NUT

NUT

4шт.

5

WA060000

WASHER

4шт.

6

87244725

ROLLER

4шт.

7

87253587

SHAFT

(lower)

4шт.

8

87244718

STUB AXLE/STEERING S

SHAFT (LH upper)

4шт.

9

FM112030

BOLT

4шт.

10

WB120000

WASHER

4шт.

11

42-06212

BEARING

4шт.

12

42-06219

BEARING

HOUSING

4шт.

13

NA124000

NUT

4шт.

14

42-06250

ADJUSTMENT ROD

TAKE-UP ROD

4шт.

15

42-06236

GUARD

PLATE (RH)

4шт.

16

42-06248

GUARD

PLATE (LH)

4шт.

17

NA112000

NUT

4шт.

18

42-06275

BEARING

HOUSING

4шт.

19

42-06220

OIL SEAL

SEAL

4шт.

20

87240903

SUPPORT ASSY.

COVER

4шт.

21

87238804

GUARD

4шт.

22

87247718

SHAFT

(RH upper)

4шт.

23

86312250

SPLINED COUPLING,14T

COUPLING

4шт.

24

87247720

BLOCK ASSY.

BLOCK

4шт.

25

87247712

MOUNTING PARTS

MOUNT (RH)

4шт.

26

87248613

RETAINING PLATE

KEEPER PLATE

4шт.

27

WB110000

ASSEMBLY

WASHER

4шт.

28

FM110019

ASSEMBLY

BOLT

4шт.

29

HYDRAULIC MOTOR (refer page B01-03)

1шт.

30

87255186

SEAL

LABRYNTH (serial #25110 and onwards)

4шт.

31

87235128

COVER ASSY

COVER

4шт.
