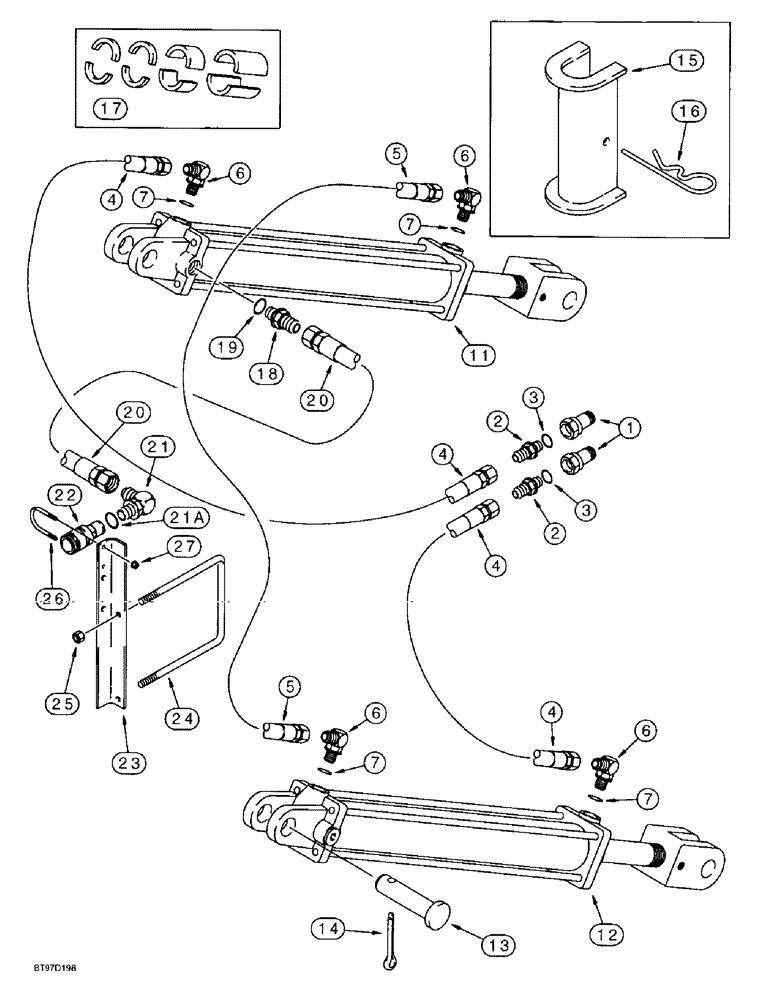

Запчасти Case IH 6800 (8-08) - TRANSPORT LIFT CYLINDERS HYDRAULIC SYS., WITH 4-1/2 INCH INCH ID SLAVE & 5 INCH ID MASTER CYLINDERS (08) - HYDRAULICS

1

1285718C2

QUICK MALE COUPLING

COUPLER - self-sealing male, 3/4-16 inch thread

2шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, HYD., , Adapter, Straight, O-ring boss 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

134209A1

HOSE

- 8763 mm (345 inch) long, tractor to rod end of right-hand lift cylinder and closed end of left-hand lift cylinder, 6800 cart

2шт.

4

113710A1

HOSE

- 7495 mm (295 inch) long, tractor to rod end of right-hand lift cylinder and closed end of left-hand lift cylinder, 6100 cart

2шт.

5

147843C2

HYDRAULIC HOSE,12.70 mm ID x 2795.00 mm, SAE 100R17

Rod End of Left-Hand Lift Cylinder to Closed End of Right-Hand Lift Cylinder 12.70 mm ID x 2795.00 mm, SAE 100R17

1шт.

6

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

4шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

11

253635A1

CYLINDER

ASSEMBLY - 127 (5) ID x 406 mm (16 inch) stroke, master, left-hand transport lift, parts list page 8-17

1шт.

12

142080A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 114 (4-1/2) ID x 406 mm (16 inch) stroke, slave, right-hand transport lift, parts list page 8-15

1шт.

13

427-16325

CLEVIS PIN,25.4mm OD x 82.55mm L

PIN - clevis, 1 x 3-1/4 inch, hardened

4шт.

14

432-1028

COTTER PIN,5/32" x 1 3/4"

PIN, SPLIT (COTTER), 5/32" x 1 3/4"

4шт.

15

142541A1

TUBE SPACER

LOCK - transport lift cylinder

2шт.

16

142542A1

SPLIT PIN/SAFETY PIN

PIN - hair, transport lock

2шт.

17

194272A1

PACKAGE

KIT - cylinder stop, 2 inch cylinders

1шт.

17

194271A1

PACKAGE

KIT - cylinder stop, 1-3/4 inch cylinders

1шт.

18

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, HYD., , Adapter, Straight, O-ring boss 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

20

90878C1

HYDRAULIC HOSE

HOSE - 990 mm (39 inch) long, to hydraulic row marker, if used

1шт.

21

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 3/4-16 flare x 7/8-14 inch adj O-ring boss

1шт.

21a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

22

A177478

COUPLING, QUICK, FEM

COUPLING - self-sealing, female

1шт.

23

231421A1

BRACKET

- mounting, coupler and extension harness

1шт.

24

142372A1

U-BOLT

- 3/8 inch NC, 7 x 8 inch

1шт.

25

425-106

NUT,3/8"-16, Cl 5

2шт.

26

231549A1

U-BOLT,1/4" - 20 x 2.2", Steel

- 1/4 inch NC, 1-3/4 inch

1шт.

27

231-4144

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.
