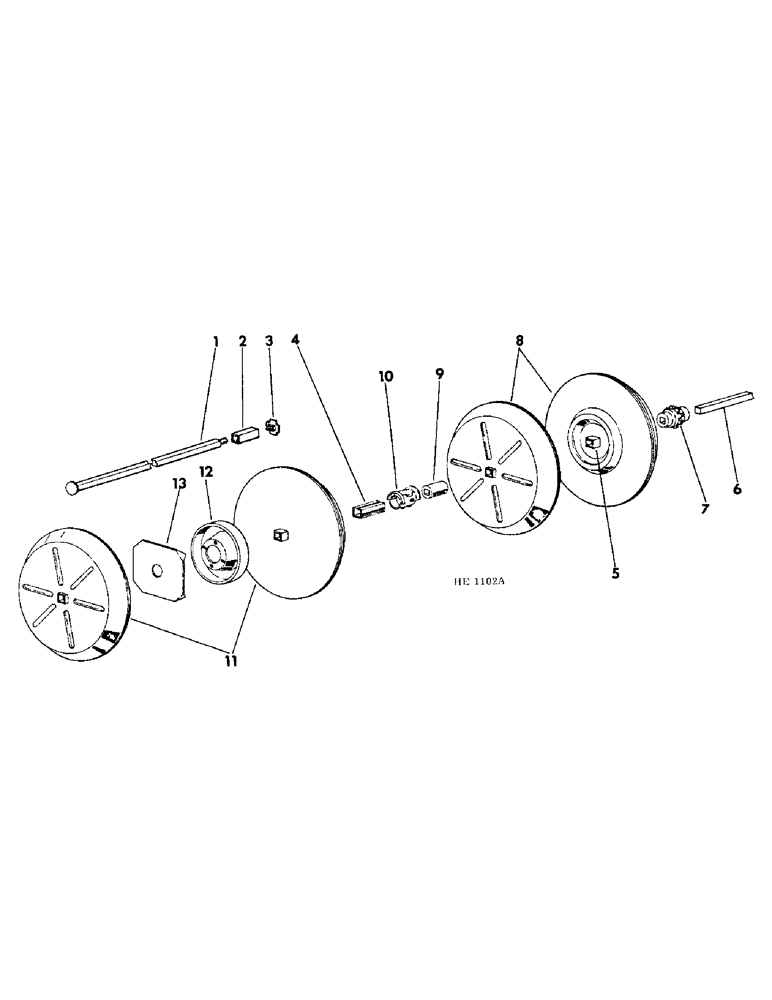

Запчасти Case IH 150 (14) - SPLIT PRESS WHEEL GANG FOR 8 X 18 HILLSIDE

1

816699C1

BOLT

gang arbor, 1971 season and since

2шт.

816698C1

WASHER,32.54mm ID x 69.85mm OD x 3.8mm Thk

1-9/32 sq hole x 2-3/4 x 9 ga plain ht

8шт.

426899

NUT,Jam, 1"-8, G5

1-8 hex jam

2шт.

603843R1

SQ HOLE WASHER,32.54mm ID x 69.85mm OD x 3.05mm Thk

1-9/32 sq hole x 2-3/4 x 11 ga plain

1шт.

2

608993R1

TUBE

SPACER, arbor bolt, 1.9 in, 1971 season and since

2шт.

3

816154C1

SQ HOLE WASHER

LOCK, arbor bolt nut, 1971 season and since

2шт.

4

605523R1

SPACER

bearing, 1.4 in

2шт.

4

599746R1

SPACER

bearing, 5.5 in

2шт.

4

599747R1

SPACER

bearing, 6.5 in

2шт.

4

604037R1

SPACER

bearing, .5 in

2шт.

4

599749R1

SPACER, wheel, 10.7 in

1шт.

5

599748R1

SPACER, drive sprocket, 8.0 in

1шт.

6

599745R1

AXLE

press wheel gang, for service on machines built prior to the 1971 season, Order 1-816699C1, arbor bolt, 1-608993R1, spacer, 1-816698R1, washer, 1-426899, nut and 1-816154C1, lock

2шт.

119202

PIN

3/8 x 2-1/4 cotter

4шт.

603843R1

SQ HOLE WASHER,32.54mm ID x 69.85mm OD x 3.05mm Thk

1-9/32 sq hole x 2-3/4 x 11 ga

1шт.

7

603902R2

SPROCKET ASSY.

SPROCKET, 10T main drive

1шт.

8

816571C1

WHEEL

split press, for use on machines built 1970 season and since

16шт.

9

603834R1

SPACER

TRUNNION, bearing

4шт.

10

603835R1

ROLLER ASSY.

BEARING, axle

4шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

4шт.

11

599755R2

WHEEL, split press, for use on machines built 1969 season, for service order 2, 81657101, wheel assy

16шт.

12

461915R1

DRUM

BAND, press wheel spacer, for use w/599755R2, wheel

8шт.

13

816572C1

PLATE, press wheel spacer, for use w/599755R2, wheel

8шт.
