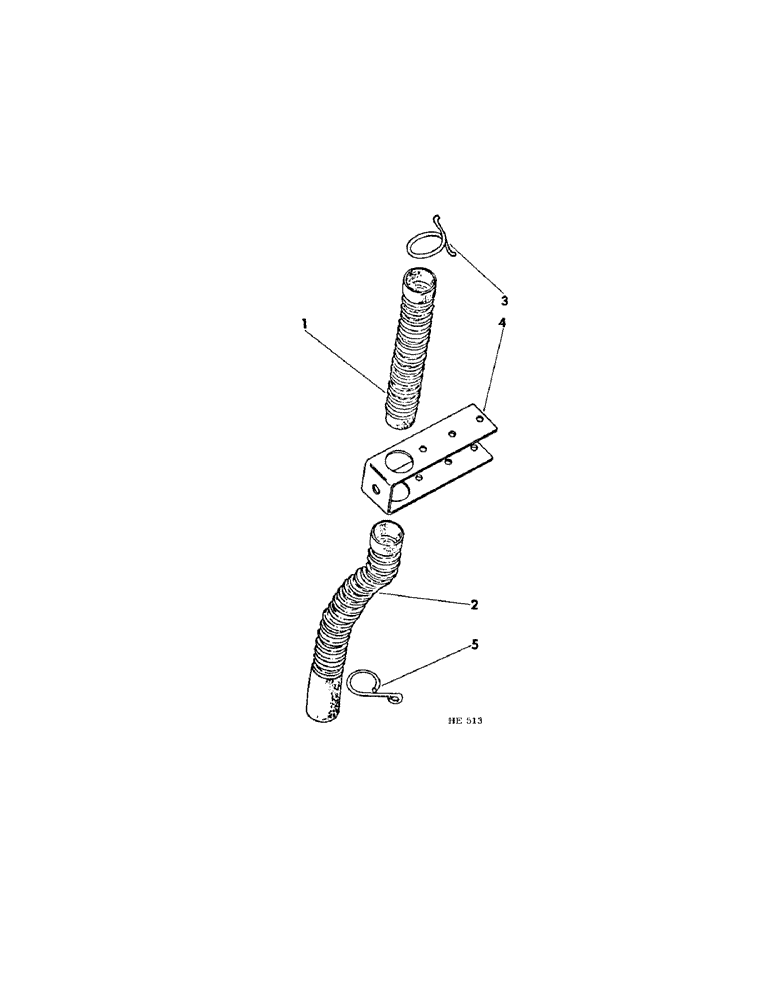

Запчасти Case IH 150 (21[1]) - SEPARATE DELIVERY FERTILIZER FEED TUBE FOR HIGH SPEED FURROW OPENERS

1

603588R3

TUBE,1.25" ID, 1.687" OD, 51, 3" Length

fertilizer delivery upper, 1 used per fertilizer feed, Opt to use 1-603101R93, pkg

1шт.

1

603101R93

SET OF PARTS

PACKAGE, fertilizer delivery tube, opt to use 1-603588R3, tube 1 used per fertilizer feed

1шт.

2

603589R3

TUBE

fertilizer delivery lower, 1 used per fertilizer feed

1шт.

3

603591R1

SPRING

fertilizer delivery tube, 1 used per fertilizer feed

1шт.

4

596661R1

CHANNEL, tube connecting, 1 used per fertilizer feed

1шт.

180112

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

5/16-18 x 2-3/4 hex-hd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

603592R1

SPRING CLIP

CLAMP, tube

1шт.
