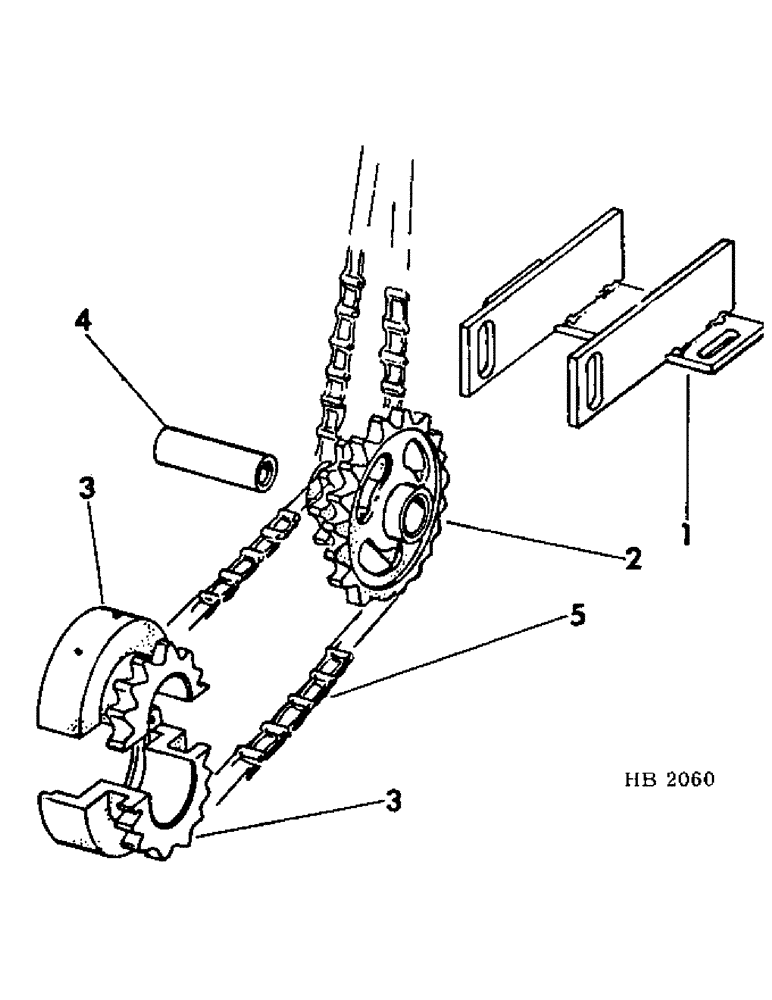

Запчасти Case IH 150 (43) - GRAIN FEED SPEED REDUCER ATTACHMENT

1

605436R11

BRACE

ASSY, speed reducer mounting, 1 used per speed sprocket

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd, 2 per brace

1шт.

120377

NUT,3/8" - 16, Gr 5

1 used per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

619856R1

WASHER

.406 x 1.000 x .054, 1 used per bolt

1шт.

2

604530R1

SPROCKET ASSY.

SPROCKET, speed reducer 7T and 15T, 1 used 10X8, 10X10 and 8X12 2 used 20X8, 14X10, 16X10, 10X12, 14X12, 10X14, 12X14, & 8X18

1шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

1/2-13 x 4-1/2 hex-hd, 1 used per sprocket

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 used per bolt 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, , 1 per bolt 1/2"

1шт.

178374R1

WASHER

.531 x 1.250 x .054, 1 used per bolt

1шт.

3

604529R1

SPROCKET ASSY.

SPROCKET, split 10T, 2 used 10X8, 10X10 and 8X12, 4 used 20X8, 14X10, 16X10, 10X12, 14X12, 10X14, 12X14 & 8X18

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16-18 x 1-1/2 hex-hd, 1 used per sprocket

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

139329

SET SCREW,Hex Soc, 1/4"-20 x 5/8"

SCREW, 1/4-20 x 5/8 hex cup, pt set, 2 used per sprocket

1шт.

4

604531R1

SPACER

sprocket pivot, 1 used per speed sprocket

1шт.

5

CHAIN, speed reducer drive, 1 used per speed sprocket, For service order 1-CS32, 10 foot roll of no 32 steel chain and reduce to 24 links

1шт.

2753809R1

PRODUCT GRAPHIC

speed reducer seeding rate

1шт.
