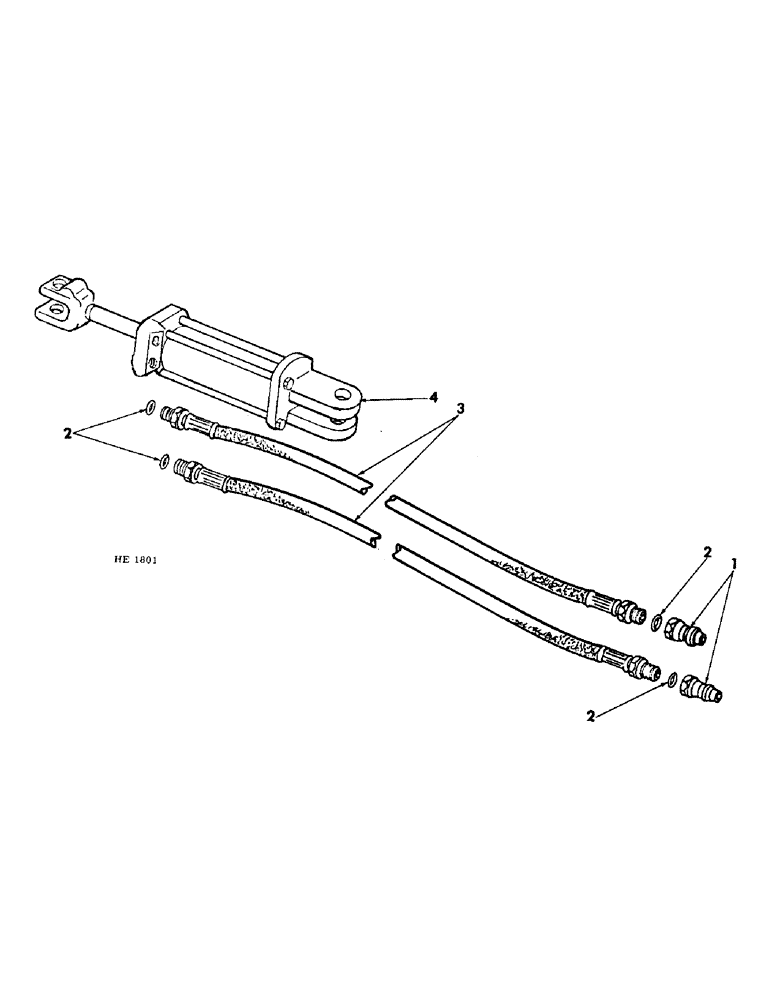

Запчасти Case IH 150 (57) - RECOMMENDED HYDRAULIC PARTS, TO CONNECT DRILL HYDRAULICS TO TRACTOR HYDRAULICS

1

395149R1

QUICK MALE COUPLING

COUPLER, hose male, Opt to use 544787R91, coupler

2шт.

1

544787R91

COUPLING, BREAK AWAY

COUPLER, hose male, Opt to use 395149R1, coupler, For tractors w/lever actuated breakaway rear coupler

2шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

hyd hose

4шт.

3

372437R91

HOSE

1/2 inch ID one wire braid 112 inch long w/7/8-14 end

2шт.

4

371291R96

CYLINDER BLOCK

CYLINDER ASSY, hydraulic, 2-1/2 x 8 da-2500 psi, Opt to use 1- 371292R95, cylinder assy, For component parts refer to remote control hydraulic cylinder

1шт.

4

371292R95

CYLINDER

ASSY, hydraulic, 3-1/2 x 8 da-2500 psi, Opt to use 1- 371291R96, cylinder assy, For component parts refer to remote control hydraulic cylinder

1шт.
