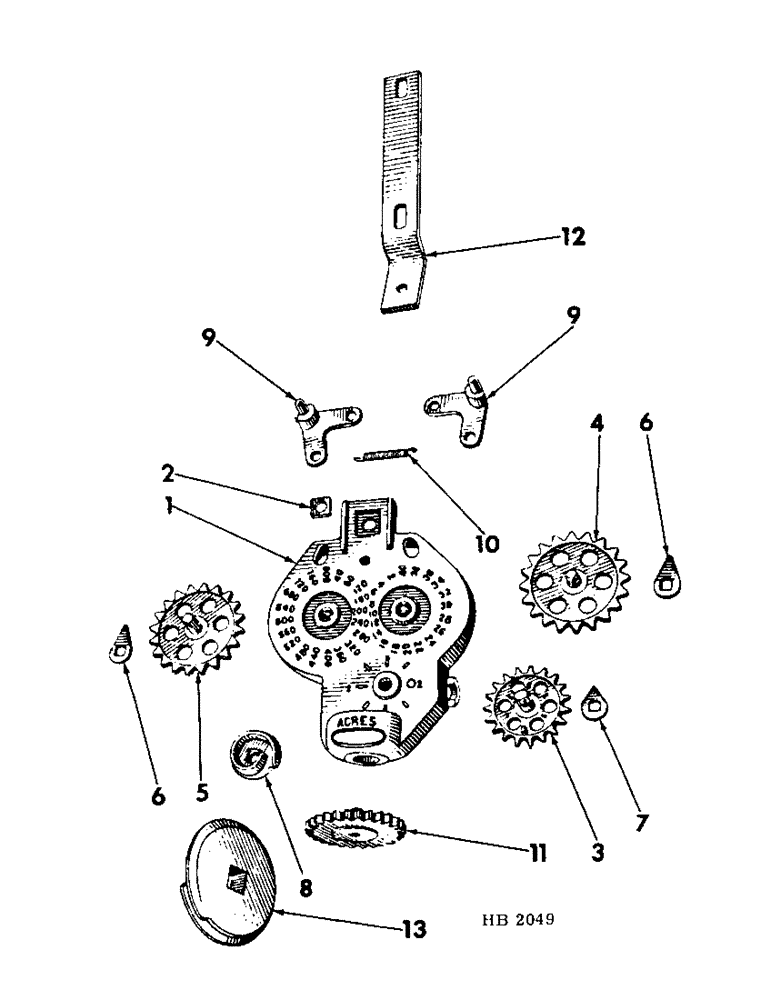

Запчасти Case IH 150 (68) - LAND MEASURE UNIT

604251R91

MEASURE ASSY, land, 10X14 & 14X10, Consists of all parts listed

1шт.

604252R91

MEASURE ASSY, land, 20X8, 16X10, 14X12, 12X14 and 8X18 Hillside Consists of all parts listed

1шт.

609006R91

MEASURE ASSY, land, 10X12, Consists of all parts listed

1шт.

609204R92

MEASURE ASSY, land, 10X10 & 8X12, Consists of all parts listed

1шт.

604250R91

MEASURE ASSY, land, 10X8, Consists of all parts listed

1шт.

1

604245R1

CASE, land measure 800 acre, 10X8

1шт.

1

604246R1

CASE, land measure, 800 acre, 20X8, 10X10, 14X10, 16X10, 8X12, 10X12, 14X12, 10X14, 12X14 and 8X18 Hillside

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

1шт.

126032

WING NUT,3/8"-16

NUT, 3/8-16 wing

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

N62810

NUT, lock, 1-20X8, 14X10, 16X10, 10X12, 14X12, 10X14, 8X18, 10X10 & 8X12

1шт.

178372R1

WASHER

13/32 x 1-1/4 x 16 ga, 3 used on 20X8, 16X10, 14X12 & 8X18

1шт.

3

N2585

GEAR

worm 19T

1шт.

4

N2586

GEAR, 2-40 acre 20T

1шт.

5

N2587

GEAR, 40-800 acre 20T, 1 each used on 20X8, 14X10, 16X10, 10X12, 14X12, 10X14, 8X18, 10X10, 8X12

1шт.

23036R1

WASHER

13/32 x 3/4 x 24 ga

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

3шт.

6

N62677

POINTER, indicator long, 1 used on 20X8, 14X10, 16X10, 10X12, 14X12, 10X14, 8X18, 10X10 & 8X12

1шт.

7

N62678

POINTER, indicator short, 1 used on 20X8, 14X10, 16X10, 10X12, 14X12, 10X14, 8X18, 10X10 & 8X12

1шт.

8

N2588

CAM, worm LH, 1-20X8, 14X10, 16X10, 10X12, 14X12, 10X14, 8X18, 10X10 & 8X12

1шт.

18878R1

BOLT, 1/4-20 x 1-1/2 sq-hd mach

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

9

N2591

STOP, gear, 20X8, 14X10, 16X10, 10X12, 14X12, 10X14, 8X18, 10X10 & 8X12

2шт.

104086

RIVET,But Hd, 1/4" x 1 1/8"

1/4 x 1-1/8 rd-hd

1шт.

10

N62683

SPRING

gear stop 1-20X8, 14X10, 16X10, 10X12, 14X12, 10X14, 8X18 10X10 & 8X12

1шт.

11

620775R1

GEAR

outside case 28T worm, 10X12

1шт.

11

N2589

GEAR

outside case 26T worm, 10X14 and 14X10

1шт.

11

620961R1

GEAR

outside case 22T worm, 20X8, 16X10, 14X12, 12X14 and 8X18 Hillside

1шт.

11

620403R1

GEAR

outside case 38T worm, 10X10 and 8X12

1шт.

12

604248R2

BRACKET, land measure support, Not included as component part of measure assy

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

1шт.

126032

WING NUT,3/8"-16

NUT, 3/8-16 wing

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

13

604420R1

GEAR

land measure worm, Not included as component part of measure assy

1шт.
