(35.100.03) - SUBBAR CYLINDER ASSEMBLY 87406914, 4" X 12"

Запчасти Case IH 30 (35.100.03) - SUBBAR CYLINDER ASSEMBLY 87406914, 4" X 12" (35) - HYDRAULIC SYSTEMS

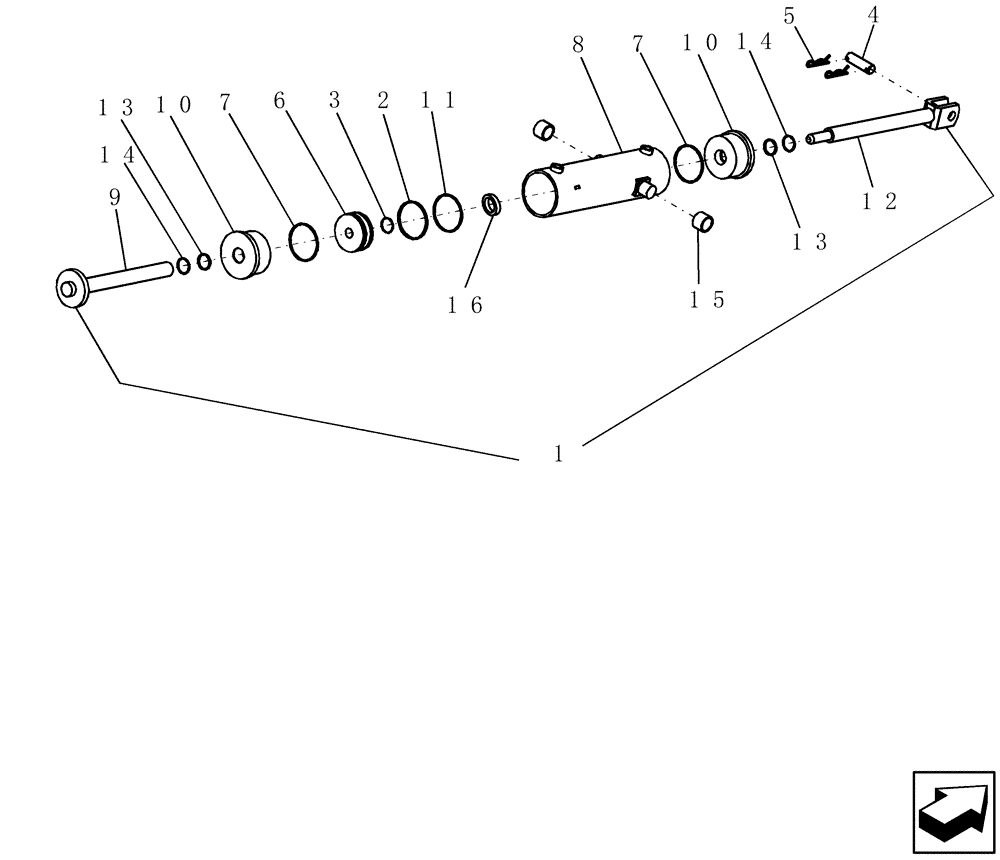

Схема запчастей Case IH 30 - (35.100.03) - SUBBAR CYLINDER ASSEMBLY 87406914, 4" X 12" (35) - HYDRAULIC SYSTEMS
12
8
16
7
11
13
2
14
1
7
10
4
5
13
15
6
9
14
3
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87406914

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 304.8mm Stroke

4" x 12" Monarch 3000 psi

1шт.

2

NSS

NOT SOLD SEPARAT

RING - WEAR

1шт.

Included in seal kit 87434586

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Included in seal kit 87434586

1шт.

4

350108A1

PIN

cylinder - 1 x 2.41 ul

1шт.

5

350109A1

HAIR PIN COTTER

.177" x 3 1/4"

2шт.

6

87448265

PISTON

cylinder 4" bore

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING

2шт.

Included in seal kit 87434586

1шт.

8

NSS

NOT SOLD SEPARAT

TUBE

1шт.

9

87448262

PISTON ROD

1 1/2" Nitrosteel

1шт.

10

87448259

CYLINDER END CAP

front 4" bore

2шт.

11

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Included in seal kit 87434586

1шт.

12

87448261

PISTON ROD

1 1/2" Nitrosteel

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - ROD

2шт.

Included in seal kit 87434586

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - WIPER

2шт.

Included in seal kit 87434586

1шт.

15

NSS

NOT SOLD SEPARAT

BUSHING

2шт.

16

87448263

STOP

tube for 1 1/2" rod

1шт.

100

87434586

SEAL KIT

hyd cylinder seal service 4" Monarch 1 1/2" rod

1шт.
