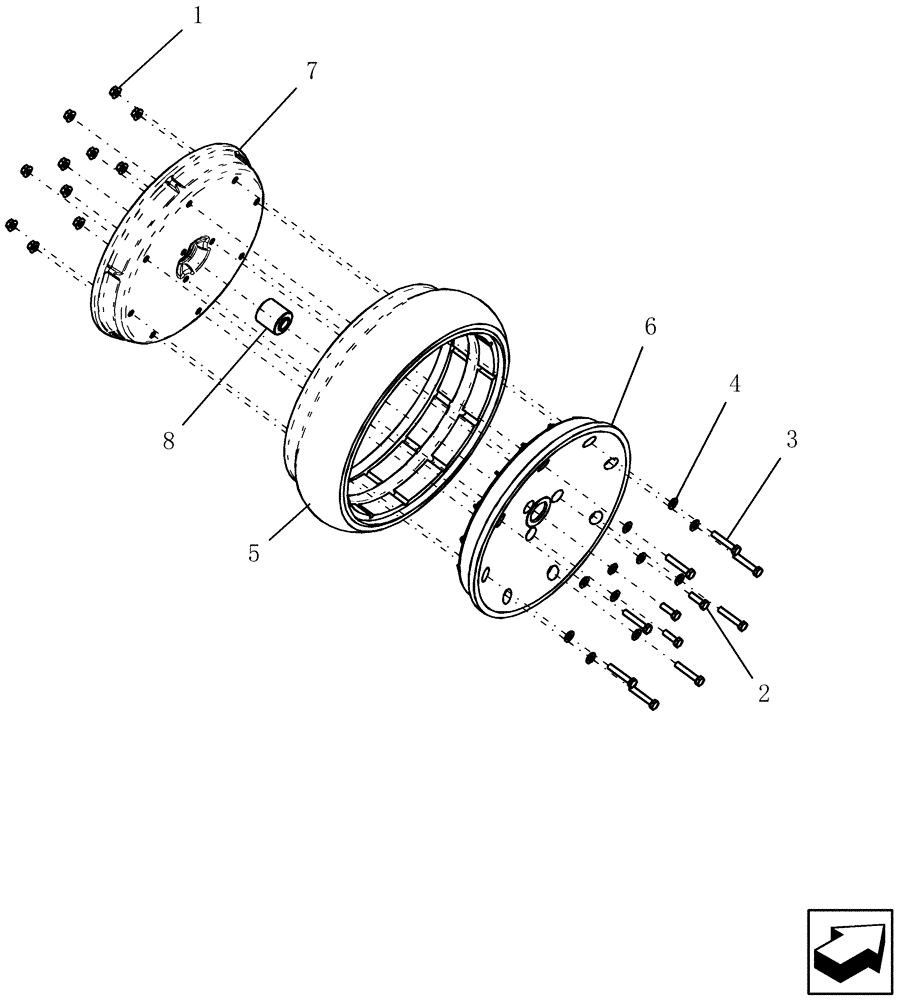

Запчасти Case IH 30 (75.100.02) - GAUGE WHEEL ASSEMBLY (75) - SOIL PREPARATION

0

306031A1

WHEEL

gauge 4 1/2" x 16"

1шт.

1

145458

SERRATED NUT,5/16"-18 GR 5 ZND

11шт.

2

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

3шт.

3

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

8шт.

4

87016603

WASHER,0.34" ID x 0.69" OD x 0.07" Thk

11шт.

5

87602293

COMPACTOR WHEEL

4.5 x 16 gauge

1шт.

6

87604021

WHEEL DISC

black nylon half, 16" cleaner wheel

1шт.

7

87604612

WHEEL

black steel half, 16" cleaner wheel

1шт.

8

306007A1

NEEDLE BEARING,16mm ID x 40.25mm OD x 44.12mm W

16 mm bore x 40 mm wide

1шт.
