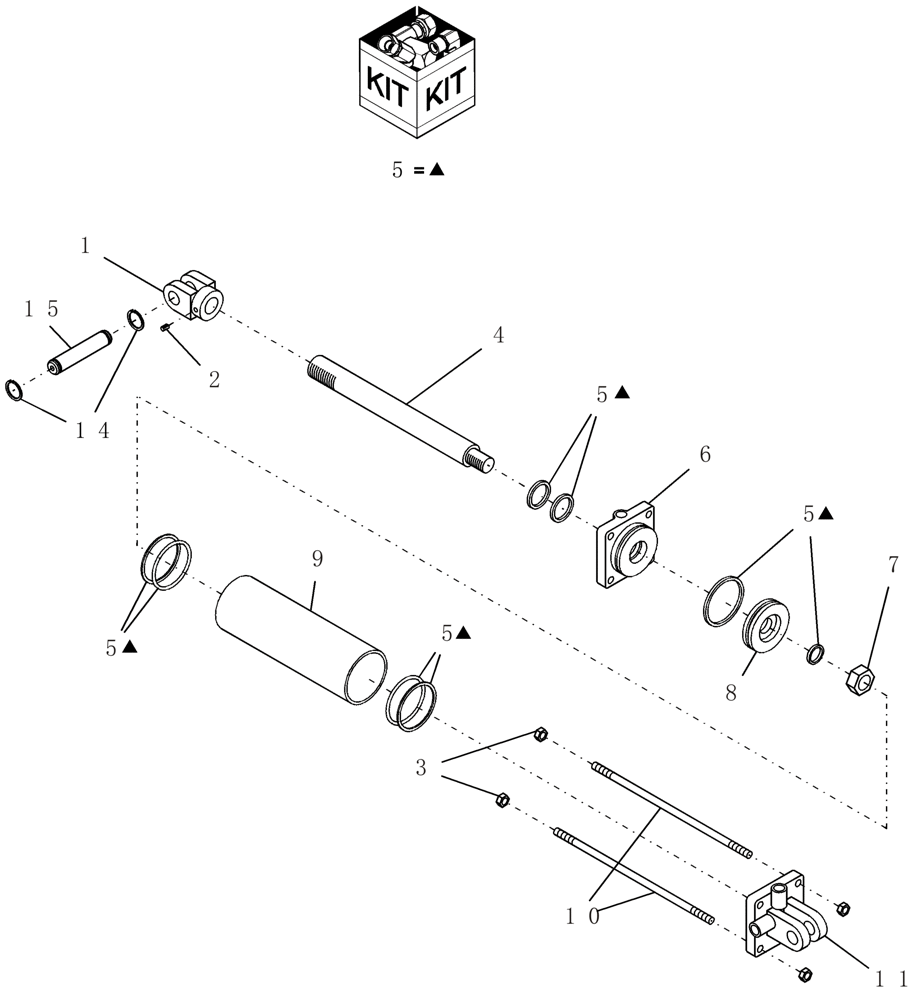

Запчасти Case IH 30 (75.200.07) - ENDMARKER HYDRAULIC CYLINDER 2" X 12" - 2500 PSI (75) - SOIL PREPARATION

0

22990

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 304.8mm Stroke

2" x 12" Monarch, 3000 psi, with pins

1шт.

1

87449358

CLEVIS

cylinder 1" pin Monarch 1 1/8"-12 rod

1шт.

2

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

3

9628503

NUT,3/8"-16, G5

8шт.

2a

1029632

PLUG

nylon 5/16" od x 1/4" pln solid

1шт.

4

439279A1

PISTON ROD

2 1/2" x 12" Monarch

1шт.

5

8179

SEAL KIT

2d & 1 1/8" rod Monarch #639572

1шт.

6

86983878

CYLINDER END CAP

rod 2" x 12" Monarch 2" x 1 1/8" rod 8orb (#492665)

1шт.

7

425038A1

NUT

cylinder piston 3/4"-16, GA

1шт.

8

86983879

PISTON

cylinder, 2" x 3/4" Monarch psp seal (#494789)

1шт.

9

2684

HYD TUBE

cylinder, 2" x 12" Monarch

1шт.

10

8181

TIE-ROD

threaded cylinder 3/8" x 12"

4шт.

11

87409443

HEAD

cylinder base 2" bore

1шт.

14

136-62

HAIR PIN COTTER

external 3/4" id x 2"

2шт.

15

1945

PIN

cylinder, 1 x 3 ul snap ring grv

1шт.
