(35.100.04) - SUBBAR CYLINDER ASSEMBLY, 87406916, 4 1/2" X 12"

Запчасти Case IH 40 (35.100.04) - SUBBAR CYLINDER ASSEMBLY, 87406916, 4 1/2" X 12" (35) - HYDRAULIC SYSTEMS

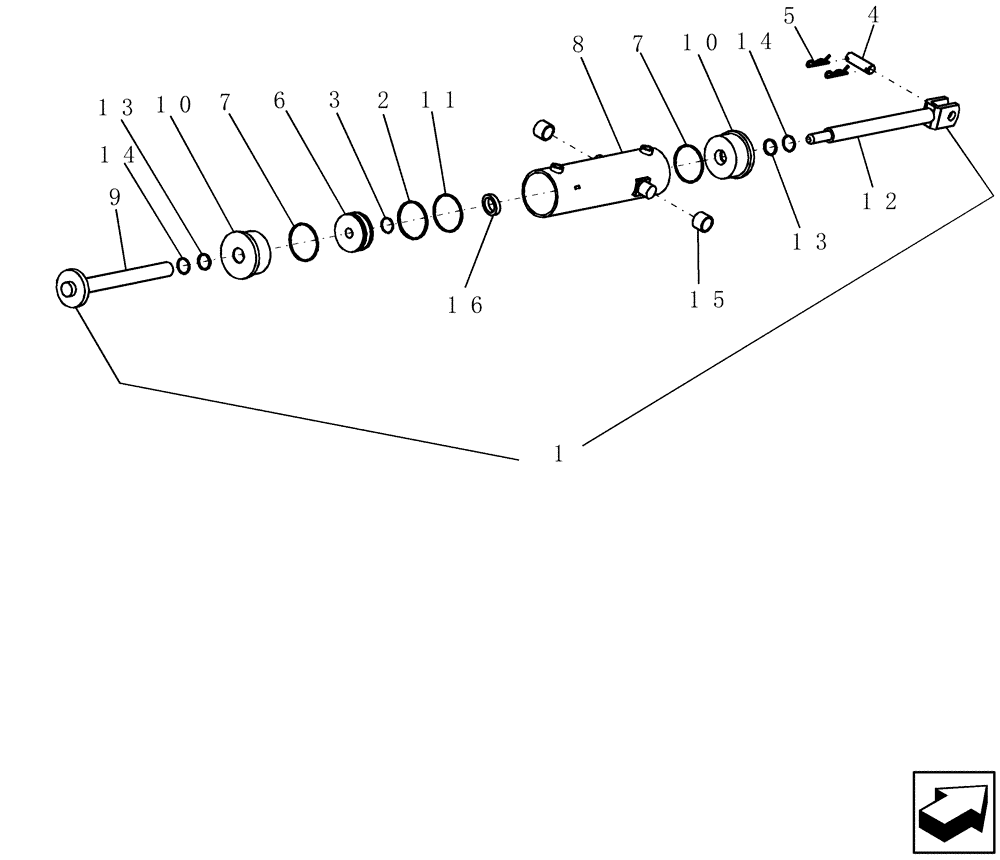

Схема запчастей Case IH 40 - (35.100.04) - SUBBAR CYLINDER ASSEMBLY, 87406916, 4 1/2" X 12" (35) - HYDRAULIC SYSTEMS
4
10
16
7
13
9
10
2
6
12
11
13
7
5
3
14
14
1
8
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87406916

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 304.8mm Stroke

4 1/2" x 12" Monarch 3000 psi

1шт.

1

87406916R

REMAN-HYD CYLINDER

40 PRECISION DISK DRILL, Monarch 3000 psi (7/08-)

1шт.

1

87406916C

CORE-HYD CYLINDER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

RING - WEAR

1шт.

Included in seal kit 87434587

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Included in seal kit 87434587

1шт.

4

350108A1

PIN

cylinder - 1 x 2.41 ul

1шт.

5

350109A1

HAIR PIN COTTER

.177" x 3 1/4"

2шт.

6

87448266

PISTON

cylinder 4 1/2" bore

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING

2шт.

Included in seal kit 87434587

1шт.

8

NSS

NOT SOLD SEPARAT

TUBE

1шт.

9

87448262

PISTON ROD

1 1/2" Nitrosteel

1шт.

10

87448260

CYLINDER END CAP

front 4 1/2" bore

2шт.

11

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Included in seal kit 87434587

1шт.

12

87448261

PISTON ROD

1 1/2" Nitrosteel

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - ROD

2шт.

Included in seal kit 87434587

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - WIPER

2шт.

Included in seal kit 87434587

1шт.

15

NSS

NOT SOLD SEPARAT

BUSHING

2шт.

16

87448263

STOP

tube for 1 1/2" rod

1шт.

100

87434587

SEAL KIT

4 1/2" x 12" Monarch

1шт.
