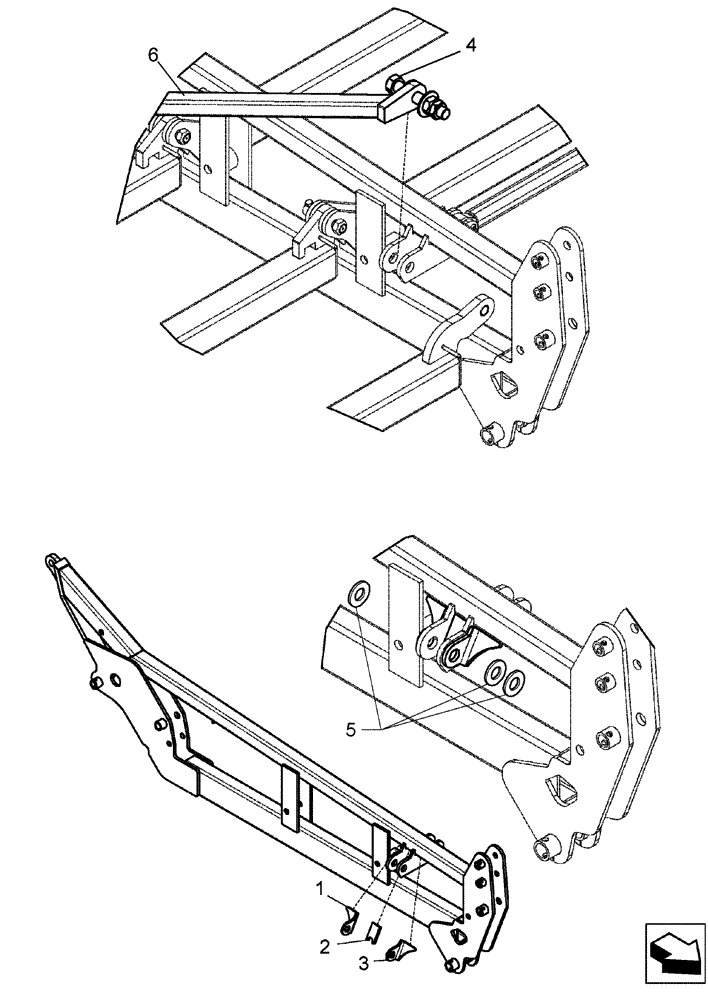

Запчасти Case IH 400 (39.100.31) - KIT - CENTER BEAM TIE MOUNT (39) - FRAMES AND BALLASTING

0

87619756

KIT

Tie Support

1шт.

1

87617934

SUPPORT

rear tie mount RH

1шт.

Shown

1шт.

1

87617936

SUPPORT

rear tie mount LH

1шт.

Not Shown

1шт.

2

87620406

SUPPORT

center tie mount

2шт.

3

87617933

SUPPORT

front tie mount RH

1шт.

Shown

1шт.

3

87617935

SUPPORT

front tie mount LH

1шт.

Not Shown

1шт.

4

87635854

BOLT,Hex, 1 1/4" - 7 x 7", Gr 5

2шт.

5

87370

WASHER,1.38" ID x 3" OD x 0.17" Thk

6шт.

6

87501142

BRACKET

diagonal 6' wing RH

1шт.

Shown

1шт.

6

87501143

BRACKET

diagonal 6' wing LH

1шт.

Not Shown

1шт.
