(77.101.AB[01]) - SINGLE FAN MOUNT

Запчасти Case IH 500 (77.101.AB[01]) - SINGLE FAN MOUNT (77) - SEEDING/PLANTING

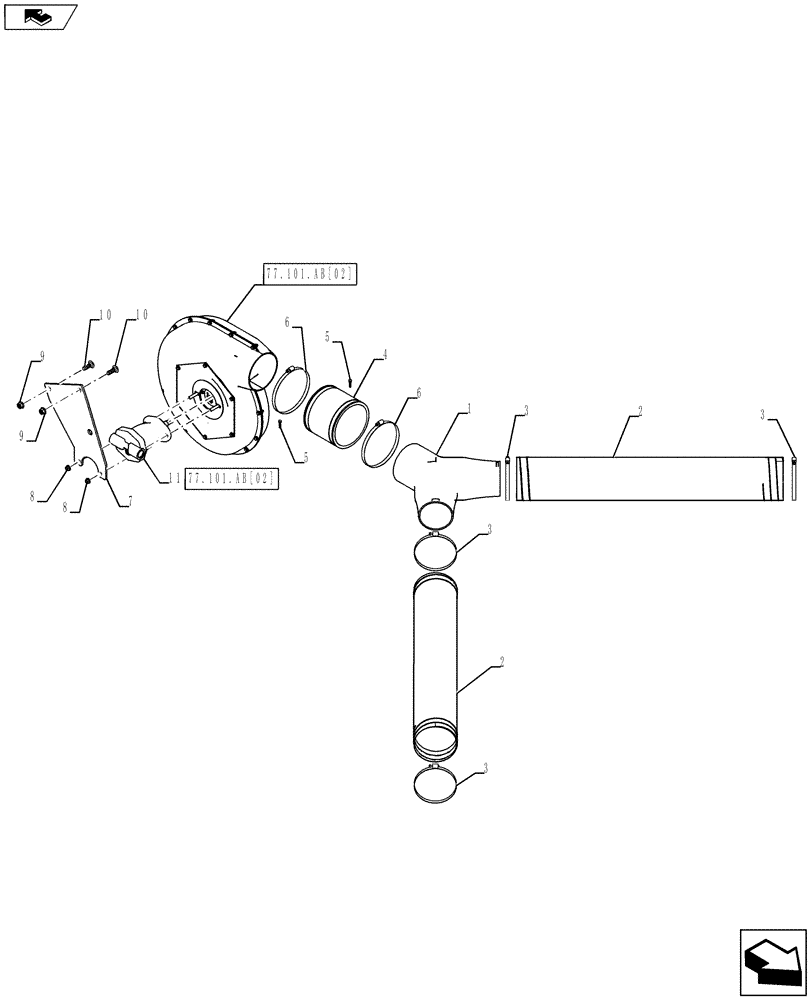

Схема запчастей Case IH 500 - (77.101.AB[01]) - SINGLE FAN MOUNT (77) - SEEDING/PLANTING
3
10
77.101.ab[02]
7
11
8
9
8
3
6
3
6
9
4
home
5
3
5
10
1
2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

312284A1

TUBE,123.8 mm ID, 130.2 - 152.4 mm OD

1шт.

2

86990424

HOSE

6.00" Flex 950mm Long

2шт.

3

87690486

CLAMP,149mm ID - 172mm ID, SAE #100

# 100 5.88" 6.75" Type F Worm Gear

4шт.

4

312229A1

RUBBER

Coupler 6.00"

1шт.

5

86516065

SELF-TAP SCREW,Hex Hd, 1/4" x 1"

2шт.

6

214-14116

HOSE CLAMP,#116, 6.88" - 7.75", Type F Worm

2шт.

7

84495331

BRACKET

Fan Mount

1шт.

8

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

9

86521607

FLANGE NUT,Flg, 1/2"-13, G5

2шт.

10

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

2шт.

11

278188A1

MOTOR

9.8 Cubic Cen Displacement

1шт.

11

278188A1R

REMAN-HYD MOTOR

Reman For New PN 278188A1

1шт.

11

278188A1C

REMAN-HYD MOTOR

Return Number

1шт.
