(79.100.AA[13]) - AIR PACK 40 FT 7.5 IN TOW BEHIND EXTENDED HITCH

Запчасти Case IH 500 (79.100.AA[13]) - AIR PACK 40 FT 7.5 IN TOW BEHIND EXTENDED HITCH (79) - PLANTING

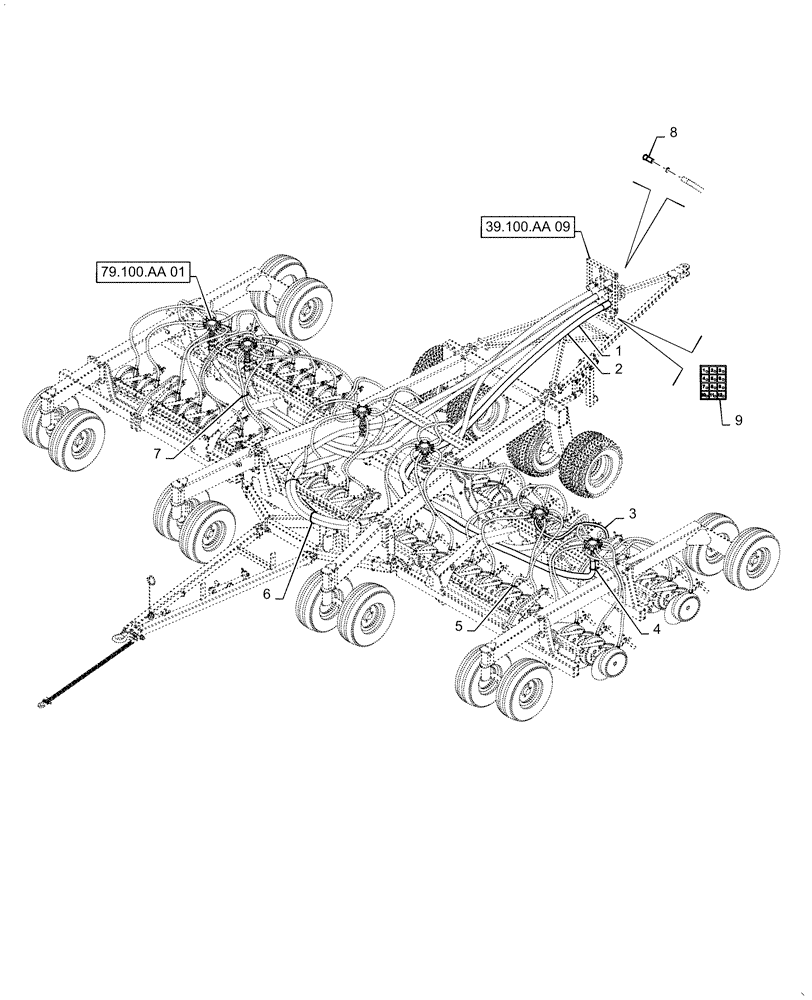

Схема запчастей Case IH 500 - (79.100.AA[13]) - AIR PACK 40 FT 7.5 IN TOW BEHIND EXTENDED HITCH (79) - PLANTING
79.100.aa 01
7
1
8
2
4
6
9
5
3
39.100.aa 09
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

351468A1

HOSE, BULK

2.5" x 100 Ft

2шт.

2

1978964C1

HOSE

Bulk 2.5 x 50 Ft

1шт.

3

87483976

HOSE

Bulk 1.0 x 100 Ft

4шт.

4

1824

CLAMP

2.5" Muffler

16шт.

5

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

64шт.

6

87557086

CABLE TIE

30" Black

10шт.

7

87557087

CABLE TIE

11" Black

32шт.

8

47771466

TUBE

Air Pack Female

8шт.

9

47748071

DECAL

Air Pack 1-12

3шт.
