(79.904.AA[03]) - AIR DISTRIBUTION HOSE SUPPORT TOW BEHIND 30 FOOT DRILLS

Запчасти Case IH 500 (79.904.AA[03]) - AIR DISTRIBUTION HOSE SUPPORT TOW BEHIND 30 FOOT DRILLS (79) - PLANTING

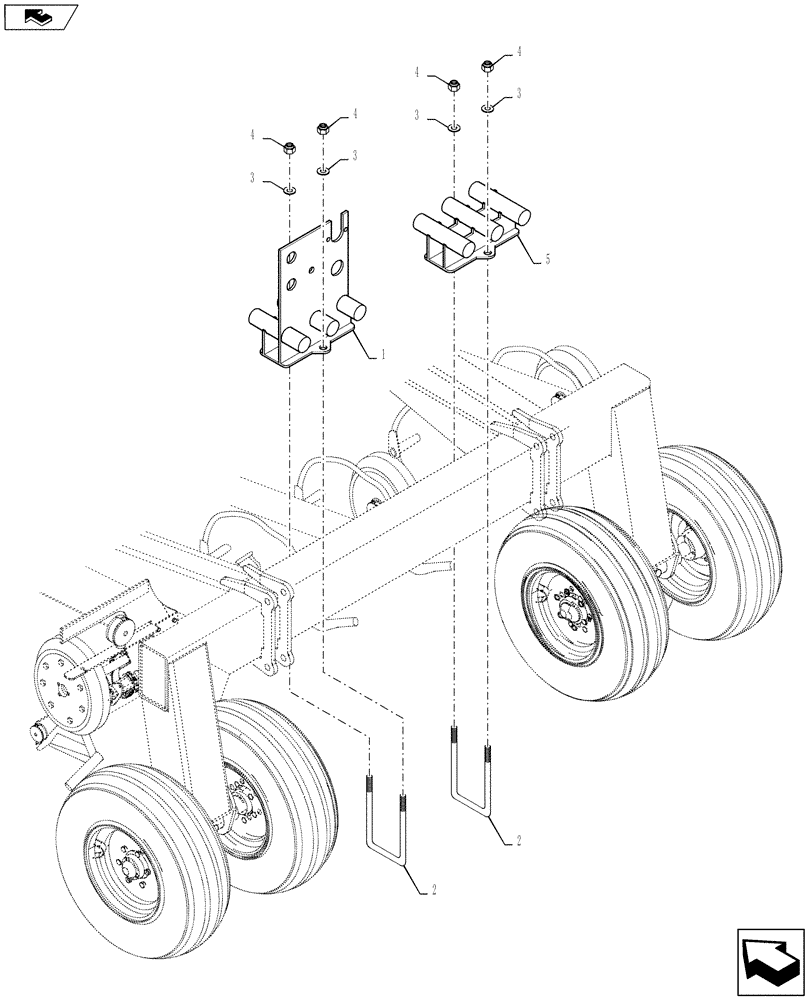

Схема запчастей Case IH 500 - (79.904.AA[03]) - AIR DISTRIBUTION HOSE SUPPORT TOW BEHIND 30 FOOT DRILLS (79) - PLANTING
4
2
home
4
4
3
4
3
2
5
3
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84578513

MOUNT

Manifold Hose

1шт.

2

439409A1

U-BOLT

.75 6.16W 12D

2шт.

3

87326958

WASHER,0.78" ID x 1.25" OD x 0.05" Thk

.75 ID 1.25 OD

4шт.

4

280375

NUT,3/4"-10, GC

4шт.

5

84578509

MOUNT

Manifold Hose

1шт.
