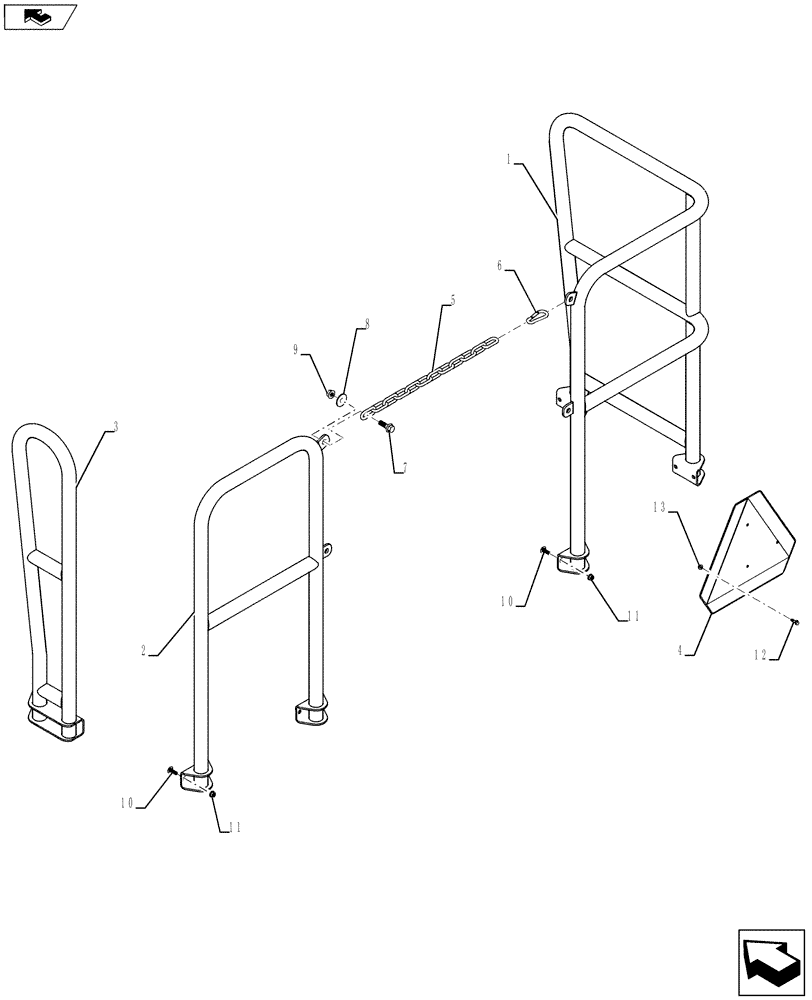

Запчасти Case IH 500 (39.100.AB[10]) - TANK PLATFORM HAND RAILING 25/30/40 FOOT (39) - FRAMES AND BALLASTING

1

84489276

HANDRAIL

1шт.

2

84489278

HANDRAIL

1шт.

3

84489285

HANDRAIL

1шт.

4

412742A1

WARNING SIGN

1шт.

5

87740395

CHAIN LINK

2шт.

6

47370080

CLIP

2шт.

7

86521615

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

8

81872600

WASHER,0.5" ID x 1.62" OD x 0.08" Thk

2шт.

9

86521607

FLANGE NUT,Flg, 1/2"-13, G5

2шт.

10

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

13шт.

11

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

13шт.

12

86521550

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

13

86624020

FLANGE NUT,Flg, 1/4"-20.G5

2шт.
