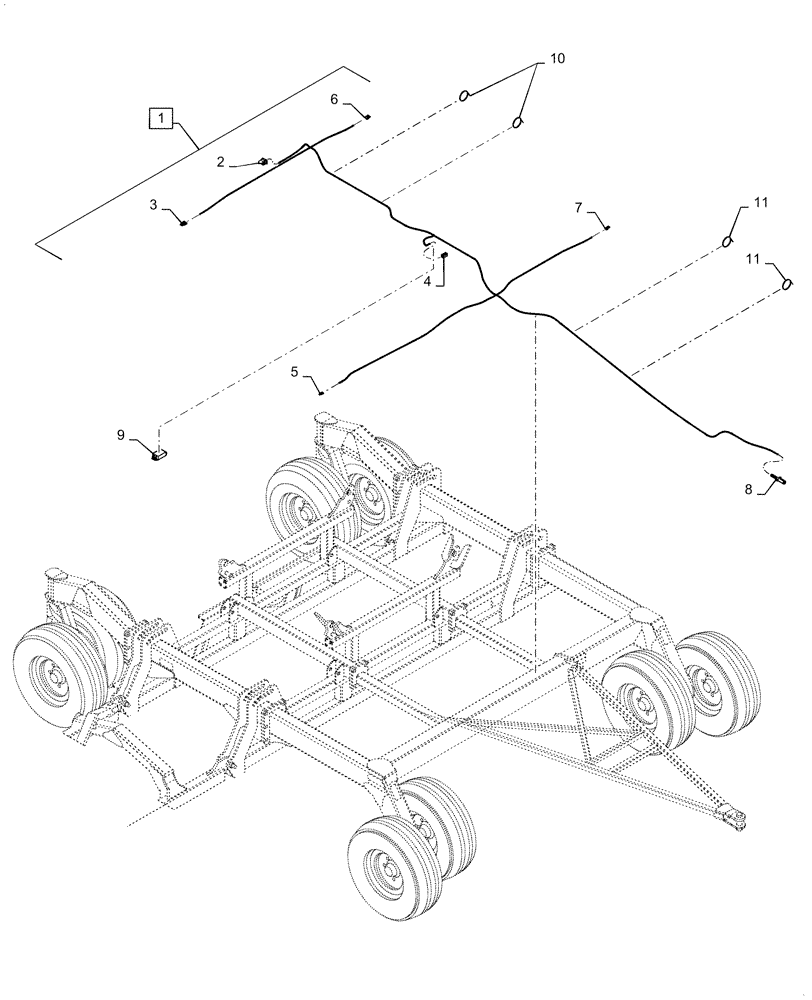

Запчасти Case IH 500 (55.100.AA[01]) - LIGHT HARNESS (55) - ELECTRICAL SYSTEMS

1

47787231

WIRE HARNESS

Lighting 50/60 foot Incl 2 - 8, Start Serial: YFS061075

1шт.

2

84162518

ELEC CONNECTOR

To Implement , Start Serial: YFS061075

1шт.

3

87644909

WIRE CONNECTOR,Female, 3 Pins

Right Tail Light , Start Serial: YFS061075

1шт.

4

87694112

ELEC CONNECTOR,Female, 6 Pole

Module , Start Serial: YFS061075

1шт.

5

87692855

CONTACT HOUSING,Male, 2 Cavities

Right Turn Light , Start Serial: YFS061075

1шт.

6

87644909

WIRE CONNECTOR,Female, 3 Pins

Left Tail Light , Start Serial: YFS061075

1шт.

7

87692855

CONTACT HOUSING,Male, 2 Cavities

Left Turn Light , Start Serial: YFS061075

1шт.

8

84137504

MULTIPOLE CONNECTOR,Female, 7 Pole

To Tractor Lights , Start Serial: YFS061075

1шт.

9

86561136

MODULE

Lighting Control , Start Serial: YFS061075

1шт.

10

87557085

CABLE TIE

24", Start Serial: YFS061075

1шт.

11

87557087

CABLE TIE

11", Start Serial: YFS061075

1шт.
