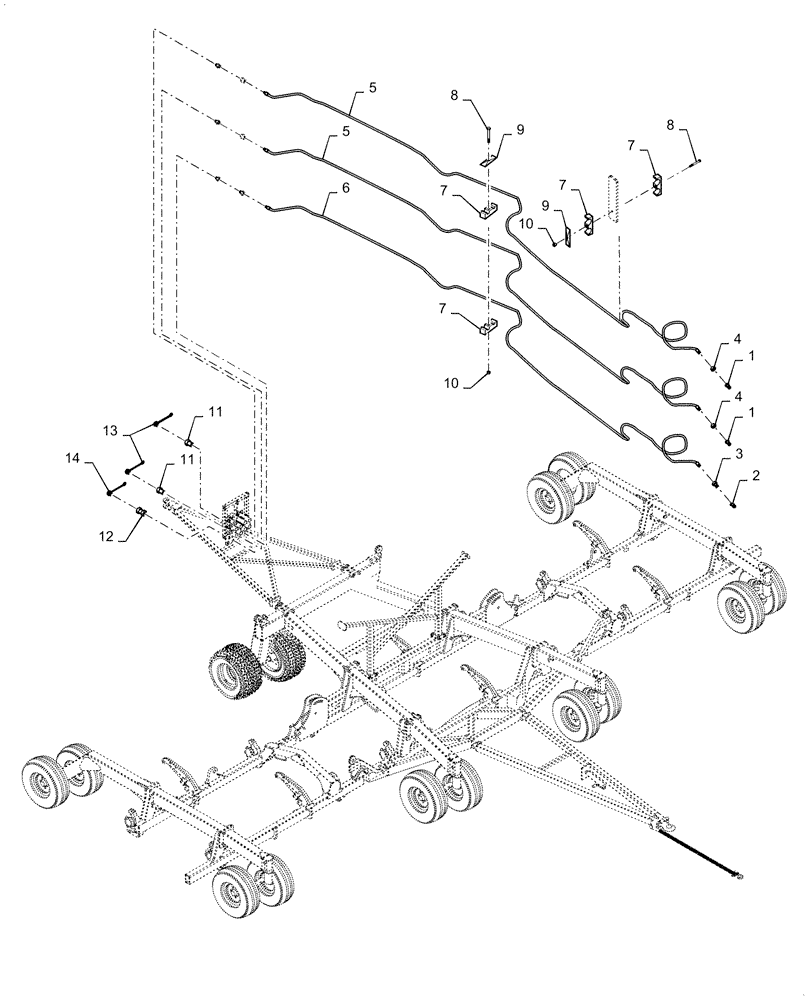

Запчасти Case IH 500T (35.100.AA[01]) - HYDRAULICS CROSS TILLAGE TOW BEHIND AIR CARTS (35) - HYDRAULIC SYSTEMS

1

9358

QUICK MALE COUPLING,1" - 11.5 NPTF

, Start Serial: YFS061001

2шт.

2

385358A1

QUICK MALE COUPLING,3/8"

, Start Serial: YFS061001

1шт.

3

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

, Start Serial: YFS061001

1шт.

4

86512927

HYD CONNECTOR,1-5/16" - 12 JIC x 1" - 11-1/2 NPT

, Start Serial: YFS061001

2шт.

5

47788174

HYDRAULIC HOSE

25 x 11000 mm 30 Ft Drill, Start Serial: YFS061001

2шт.

5

47788175

HYDRAULIC HOSE

25 x11500 mm 40 ft Drill , Start Serial: YFS061001

2шт.

6

47788171

HYDRAULIC HOSE

12.5 x 11000 mm 30 Ft Drill , Start Serial: YFS061001

1шт.

6

47788172

HYDRAULIC HOSE

12.5 x 11500 mm 40 ft Drill, Start Serial: YFS061001

1шт.

7

84566334

HOSE CLAMP

Lower Plastic Block , Start Serial: YFS061001

1шт.

8

86507008

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

, Start Serial: YFS061001

1шт.

9

84566330

PROTECTION PLATE

Upper Plastic Block , Start Serial: YFS061001

1шт.

10

86629544

NUT,5/16” – 18, GR B

, Start Serial: YFS061001

1шт.

11

9359

COUPLING, QUICK, FEM

, Start Serial: YFS061001

2шт.

12

385357A1

COUPLING

Female , Start Serial: YFS061001

1шт.

13

9360

PLUG

Dust Plug 1", Start Serial: YFS061001

2шт.

14

5260

PLUG

Dust .5", Start Serial: YFS061001

1шт.
