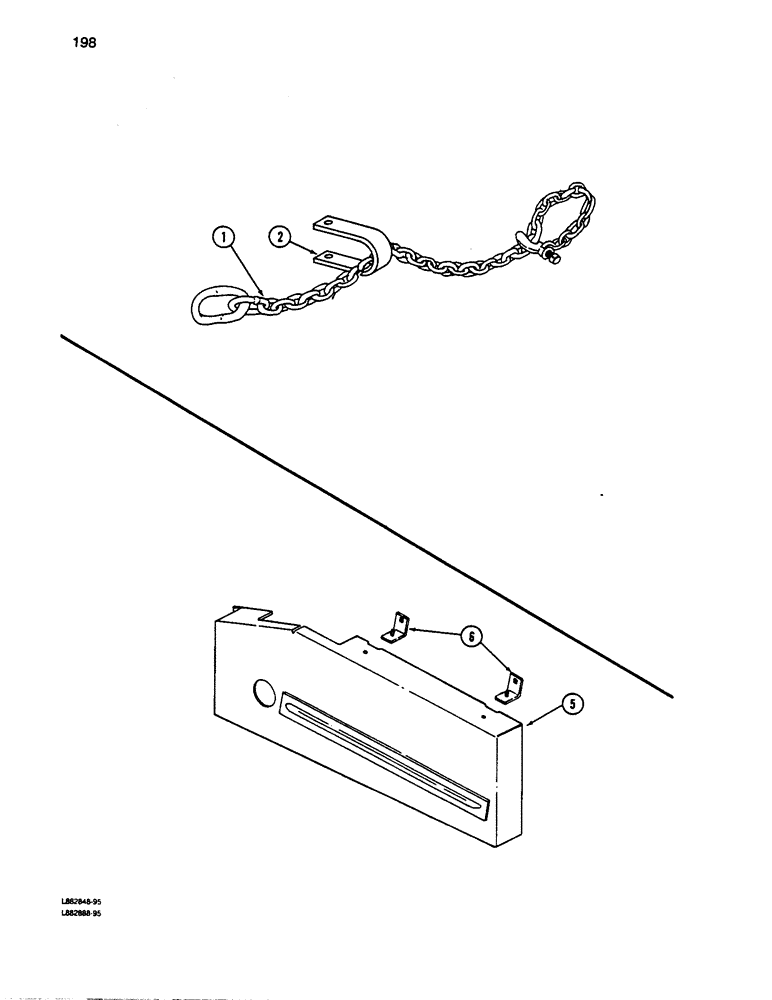

Запчасти Case IH 5100 (198) - SAFETY CHAIN

1

100682C3

CHAIN (AG)

CHAIN ASSEMBLY - safety 10,000 pound

1шт.

1

63506C2

CHAIN (CE)

CHAIN ASSEMBLY - safety 20,000 pound (For use with duplexing drills with two drill hitch)

1шт.

850367C1

SPACER

- chain link

1шт.

597176R1

WASHER

- chain link

1шт.

2

148558C1

CLEVIS

- safety chain, 10,000 pound (Replaces S9173A)

1шт.

2

1279163C1

CLEVIS COUPLING

CLEVIS - safety chain (Replaces S9173A)(For use with 20,000 pound chain and two drill hitch)

1шт.

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

1шт.

20033R1

LOCK NUT

NUT - hex lock, 5/8 inch NC

1шт.

113-730

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch

1шт.

22244R1

LOCK NUT

- hex lock, 3/4 inch NC

1шт.

26512R1

WASHER

- flat, 25/32 x 2 x 5/32 inch

1шт.

61913C92

PACKAGE

KIT - chain hardware (10,000 pounds)(Consists of 148558C1 and attaching hardware)

1шт.

5

815145C1

SHIELD

- main drive, left (See Note A)

1шт.

5

843119C1

SHIELD

- main drive, left (See Note B)

1шт.

5

815146C1

SHIELD

- main drive, right (See Note C)

1шт.

5

843120C1

SHIELD

- main drive, right (See Note D)

1шт.

129-419

WING NUT,5/16"-18

NUT - wing, 5/16 inch , main drive shield

2шт.

6

815151C1

SUPPORT

BRACKET - shield support, main drive

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch, main drive shield

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , Main drive shield 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

NUT - hex, 3/8 inch NC NOTE A: One used per left drive with 15 and 20 inch wheels. NOTE B: One used per left drive with 20 and 28 inch wheels. NOTE C: One used per right drive with 20 inch wheels. NOTE D: One used per right drive with 20 and 28 inch wheels.

1шт.
