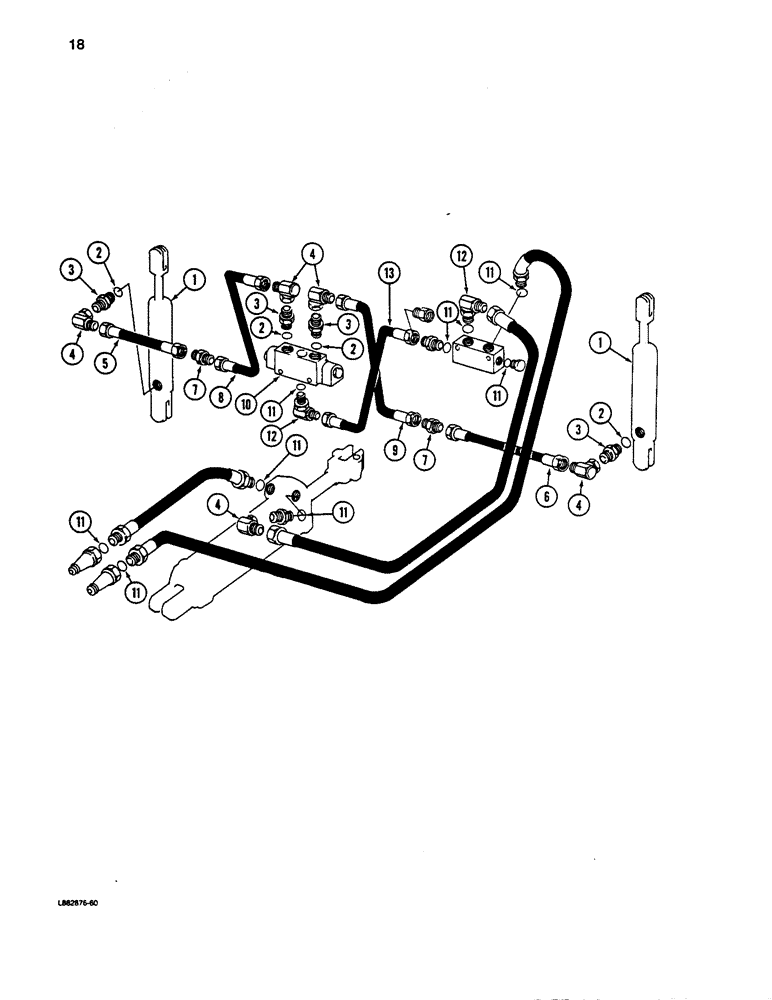

Запчасти Case IH 5100 (018) - MARKER HYDRAULICS, AUTOMATIC SEQUENCING

1

548207R93

CYLINDER ASSY.

CYLINDER ASSEMBLY - lift (Replaced by 145622C93)

2шт.

461181R92

SEAL KIT

KIT - O-ring and seal service

1шт.

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - marker lift (See Page 37)

2шт.

145682C1

SEALING RING

KIT - O-ring and seal service

1шт.

1

841038C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - lift (Optional)

2шт.

843147C1

SEAL KIT

KIT - O-ring and seal service

1шт.

2

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

4шт.

3

324273R1

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - straight, 1/2 to 3/8 inch tube

4шт.

4

9410281

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree swivel 1/2 inch

5шт.

5

587582R91

HOSE ASSY.

HOSE ASSEMBLY - hydraulic, 29 inch long (13 x 7,16 x 7,16 x 8,18 x 7and 20 x 6)

1шт.

5

196822C1

HOSE

ASSEMBLY - hydraulic, 43 inch long (24 x 6,21 x 7,20 x 8 and 16 x 10)

1шт.

6

813537C1

HOSE ASSY.

HOSE ASSEMBLY; hydraulic, 65 inch long (20 x 6, 18 x 7,16 x 8,20 x 8 and 16 x 10)

1шт.

6

196822C1

HOSE

ASSEMBLY - hydraulic, 42 inch long (Replaces 489884R1), (24x6,16x7and21 x7)

1шт.

6

66875C1

HOSE ASSY.

HOSE ASSEMBLY - hydraulic, 36 inch long (13 x 7)

1шт.

7

9402787

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

- hydraulic flared tube, 1/2 inch

2шт.

8

196822C1

HOSE

ASSEMBLY - hydraulic, 42 inch long (Replaces 489884R1) (20x6, 18x7, 16x8,20x 8 and 16x 10)

1шт.

8

66B75C1

HOSE ASSEMBLY - hydraulic, 36 inch long (24 x 6, 16 x 10 and 21 x 7)

1шт.

8

150885C91

HOSE,0.38" ID x 25.00", SAE 100R1

Hydraulic, 38" ID x 25.00", SAE 100R1

1шт.

9

587582R91

HOSE ASSY.

HOSE ASSEMBLY - hydraulic, 29 inch long (20 x 6, 18 x 7 and 16 x 8)

1шт.

9

179411C1

HOSE

ASSEMBLY - hydraulic, 61 inch long (Replaces 675987R91) (24x6and 21 x 7)

1шт.

9

675974R91

HOSE ASSY.

HOSE ASSEMBLY - hydraulic, 41 inch long (13 x 7)

1шт.

9

1140444C1

HOSE ASSY.

HOSE ASSEMBLY - hydraulic, 45 inch long (16 x 7)

1шт.

9

196822C1

HOSE

ASSEMBLY - hydraulic, 43 inch long (20 x 8 and 16 x 10)

1шт.

10

REF

INSTRUCTION

VALVE ASSEMBLY - marker control (See Page 41)

1шт.

10

REF

INSTRUCTION

VALVE ASSEMBLY - marker control (Optional)(See Page 9)

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

11

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch tube

9шт.

11

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch tube

2шт.

12

936450R91

ELBOW,90 Degree, 3/4"-16, 37 Degree x 7/8"-14, O-Ring

- 90 degree adjustable, 5/8 to 1/2 inch

2шт.

13

841182C1

HOSE ASSY.

HOSE ASSEMBLY - hydraulic, 21 inch long

1шт.
