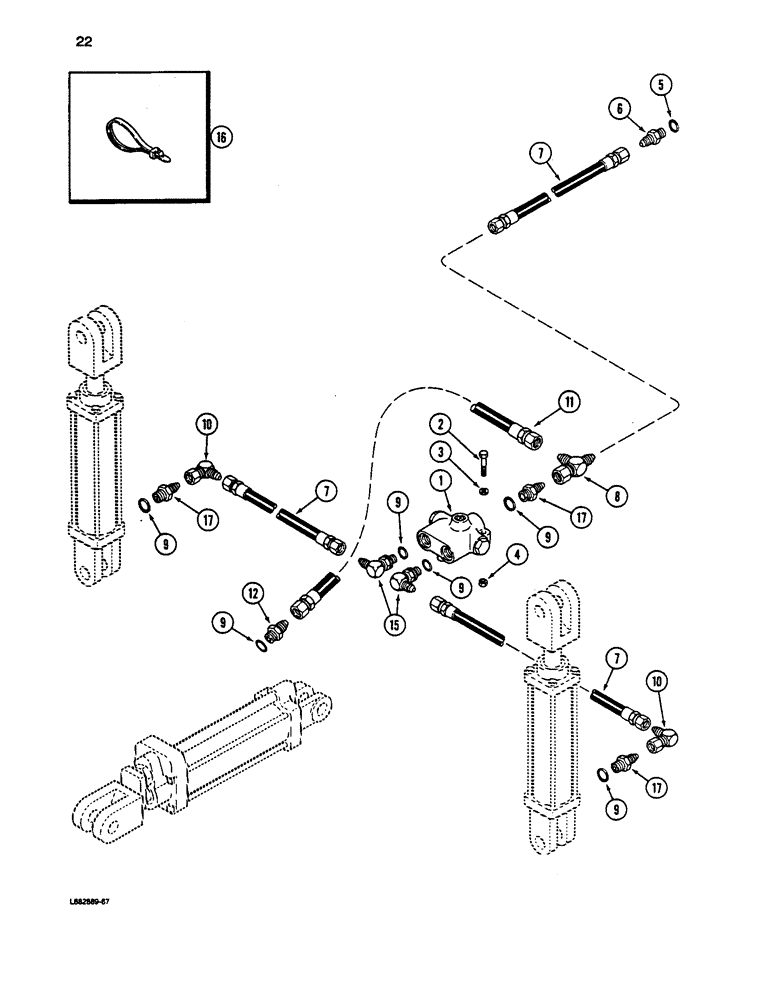

Запчасти Case IH 5100 (022) - RIGID MARKER HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - alternating marker control (See Page 45)

1шт.

2

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

4

120376

NUT,5/16"-18, G5

2шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch tube

1шт.

6

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - short, 5/8 to 1/2 inch tube

1шт.

7

841044C1

HYDRAULIC HOSE

HOSE - hydraulic, 103 inch 1ong

3шт.

8

9410333

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- swivel, 1/2 inch

1шт.

9

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch tube

7шт.

10

9410281

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree

2шт.

11

390649R92

HYDRAULIC HOSE

HOSE - hydraulic, 19 inch long

1шт.

12

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - straight, 1/2 inch tube

1шт.

15

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 1/2 inch, 90 degree

2шт.

16

813579C1

CABLE TIE

STRAP - hose retaining

6шт.

17

93207C1

HYD CONNECTOR

CONNECTOR - restrictor, 1/2 inch tube

3шт.
