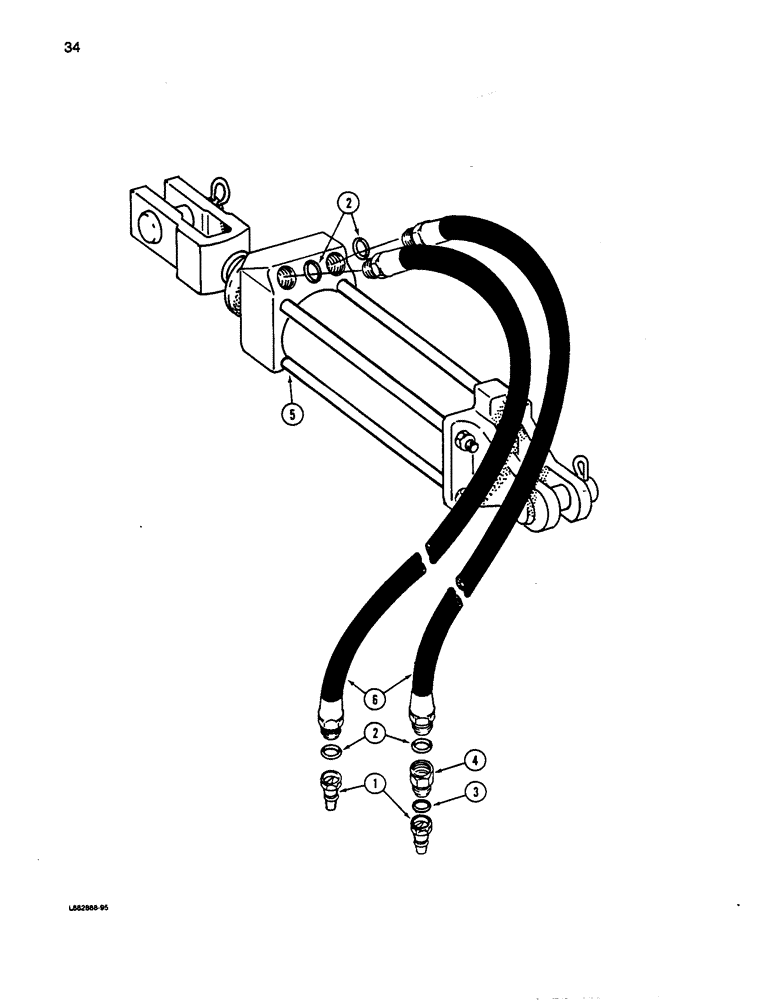

Запчасти Case IH 5100 (034) - HYDRAULIC LIFT SYSTEM

1

395149R1

QUICK MALE COUPLING

COUPLER - hose, male (See Note A)

2шт.

1

544787R91

COUPLING, BREAK AWAY

COUPLER - hose, male (See Note 8)

2шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- male coupler and hose

4шт.

3

570B28R1

O-RING - 1/2 inch tube

1шт.

4

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

CONNECTOR union reducer

1шт.

5

145353C91

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - lift (See Note C)

1шт.

79975C1

SEAL KIT

KIT - service, O-ring and seal

1шт.

224311C1

KIT

- valve and transfer tube (replaces 1272597C91)

1шт.

6

372437R91

HOSE

- hydraulic, 112 inch long

2шт.

61571C1

PIN

- headed, 1 x3-1/4 inch

1шт.

64560C1

HEADED PIN

PIN - headed, 1 x 2-15/16 inch

1шт.

520175R1

CLIP

2шт.

PIN - hair, 2-1/4 inch NOTE A: Optional to use 2-544787R91 coupler, for tractors equipped with lever actuated breakaway rear coupler, NOTE B: Optional to use 2-395149R1 coupler, for tractors equipped with lever. actuated breakaway rear coupler. NOTE C: Bee cylinder 1 parts catalog for component breakdown.

1шт.
