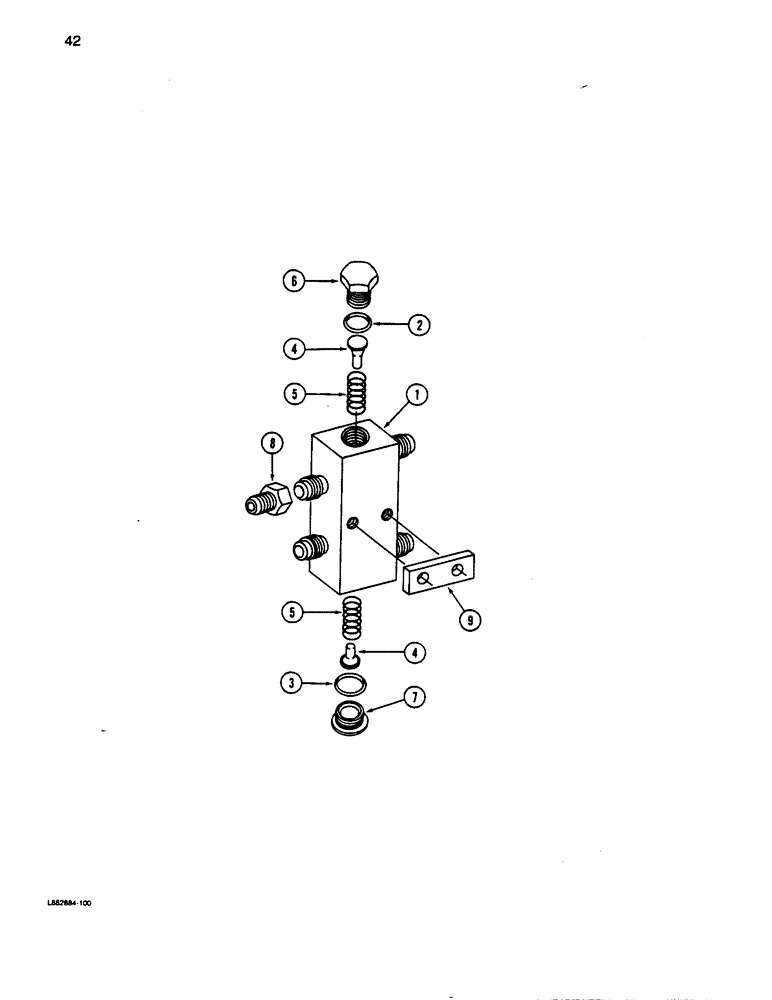

Запчасти Case IH 5100 (042) - ALTERNATING CHECK VALVE

1

142864C95

VALVE

ASSEMBLY - check

1шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch tube

1шт.

3

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 inch tube

1шт.

4

85145C1

PIN

- ball retainer

2шт.

5

372649R1

SPRING

- check valve

2шт.

6

NSS

NOT SOLD SEPARAT

PLUG - upper

1шт.

7

NSS

NOT SOLD SEPARAT

PLUG - lower

1шт.

8

386624R1

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

ADAPTER - reducer

4шт.

9

810201C1

BAR

- valve support

1шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.
