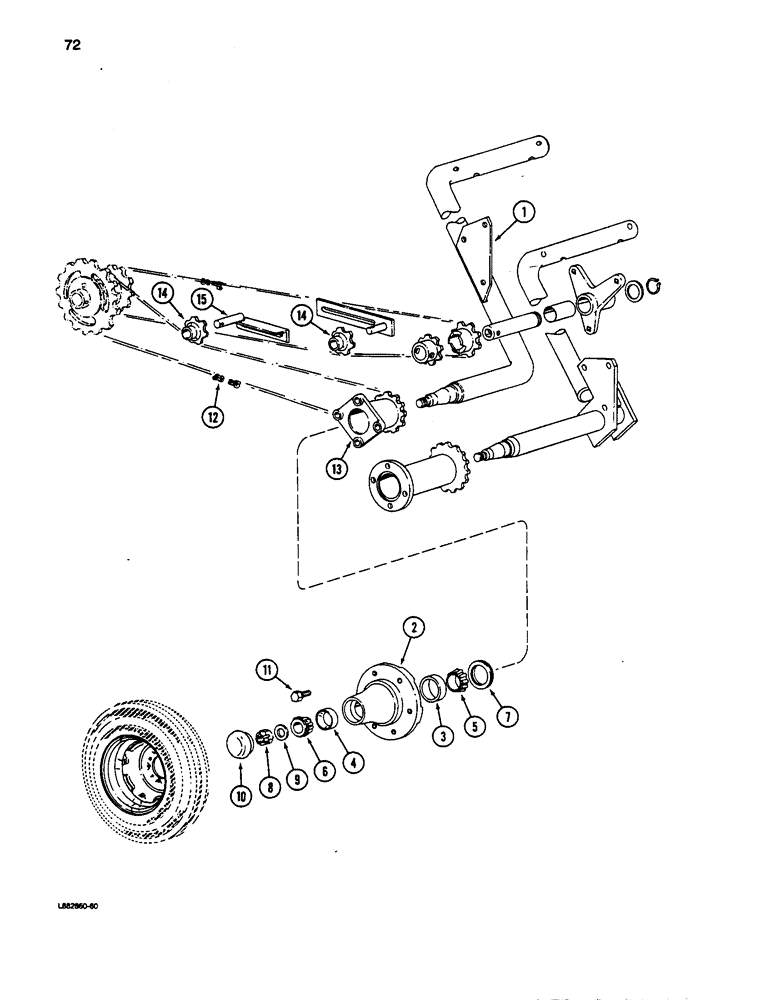

Запчасти Case IH 5100 (072) - AXLE DRIVE

1

815198C21

AXLE

ASSEMBLY - single drive with 15 inch wheels, 1eft

1шт.

1

815199C21

AXLE

ASSEMBLY - single drive with 15 inch wheels, right

1шт.

1

815200C31

AXLE

ASSEMBLY - single and double drive 20 inch wheels, left

1шт.

1

815201C31

CENTER AXLE

AXLE ASSEMBLY - single and double drive 20 inch wheels, right

1шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT - hex, slotted, 3/4 inch NF

1шт.

467750R1

WASHER

- flat, 25/32 x 1-1/2 x 7/64 inch

2шт.

132-341

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

1шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

6шт.

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

8шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

14шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

14шт.

2

815211C21

HUB

ASSEMBLY - with 6 holes (Used with 15 and 20 inch wheels)

2шт.

2

841049C91

HUB

ASSEMBLY - with 8 holes (Used with 28 inch wheels)

2шт.

3

478793R1

BEARING CUP

CUP - wheel hub, inner bearing

1шт.

4

572564R1

BEARING CUP

CUP - wheel hub, outer bearing

1шт.

5

160558C91

BEARING ASSY,1.5005" ID x 2.5635" OD x 0.72"

CONE - wheel hub, inner bearing

2шт.

6

572563R1

ROLLER BEARING,27 mm ID x 50.317 mm OD x 14.732 mm

CONE #L44649

2шт.

7

815219C91

OIL SEAL

- weel hub oil

1шт.

8

427640

SLOTTED NUT,3/4"-16, G5

NUT - hex, slotted, 3/4 inch NF

2шт.

9

467750R1

WASHER

- flat, 25/32 x 1-1/2 x 7/64 inch

4шт.

10

663906R1

CAP

- wheel hub

2шт.

11

617918R1

BOLT,9/16" - 18 x 1 15/32"

- wheel (Used with 15 and 20 inch wheels)

12шт.

11

391004R2

BOLT,Hex, 5/8" - 18 x 1.75"

BOLT - wheel (Used with 28 inch wheels)

16шт.

12

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - primary main drive (13 x 7 drills with single drive, using 15 inch wheels and 24 tooth drive sprocket)(See Note A)

1шт.

12

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - primary main drive (1 per drive with 20 inch wheels and 18 tooth drive sprocket)(See Note B)

1шт.

12

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - primary main drive (1 per drive with 28 inch wheels and 18 tooth drive sprocket)(See Note C)

1шт.

13

815220C1

DRIVE SPROCKET

SPROCKET - wheel, 9 tooth (1 per drive with 15 and 20 inch wheels)

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(4 per drive) Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (4 per drive) 3/8"

4шт.

14

819457C1

SPROCKET

- chain tightener, 6 tooth (2 per drive)

2шт.

15

819456C1

BRACKET

ASSEMBLY - chain tightener

1шт.

15

819461C1

BRACKET

1шт.

BRACKET ASSEMBLY - chain tightener, right (20 x 6, 24 x 6, 18 x 7. 21 x7,16x8 20x8 and 16x10 only) NOTE A: For service order 55 links from bulk 569089R91 chain (10 ft. roll), 1 587372R91 connecting link and 2-456929R91 offset link. NOTE B: For service order 45 links from bulk 569089R91 chain (10 ft. roll), 1 587372R91 connecting link and 2-456929R91 offset link. NOTE C: For service order 45 links from bulk 569089R91 chain (10ft, roll) and 1 587372R91 connecting link and 3-456929R91 offset link.

1шт.
