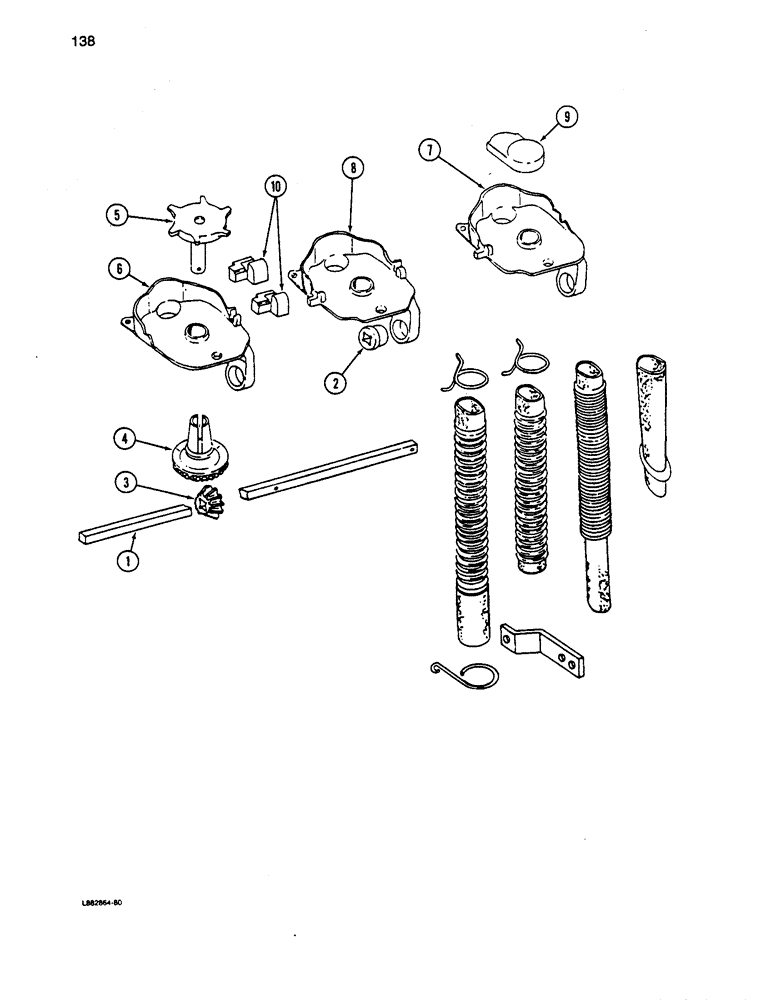

Запчасти Case IH 5100 (138) - FERTILIZER FEED

1

NSS

NOT SOLD SEPARAT

BAR - fertilizer feed shaft, 92-37/64 inch (13 x 7)(See Note)

1шт.

1

815383C1

BAR

- fertilizer feed shaft, 1 12-61/64 inch (16 x 7)

1шт.

1

NSS

NOT SOLD SEPARAT

BAR - fertilizer feed shaft 63-29/32 inch, left (18 x 7, 20 x 6)(See Note)

1шт.

1

NSS

NOT SOLD SEPARAT

BAR - fertilizer feed shaft, 69-45/64 inch, left (21 x 7)(See Note)

1шт.

1

NSS

NOT SOLD SEPARAT

BAR - fertilizer feed shaft, 63-29/32 inch, left (16 x 8)(See Note)

1шт.

1

NSS

NOT SOLD SEPARAT

BAR - fertilizer feed shaft, 73-1/2 inch, left (24 x 6)(See Note)

1шт.

1

815389C1

BAR

- fertilizer feed shaft, right (20 x 8 and 16 x 10)

1шт.

1

NSS

NOT SOLD SEPARAT

BAR - fertilizer feed shaft 78-21/32 inch, left (20x 8 and 16 x 10)(See Note)

1шт.

1

816714C1

SHAFT

- fertilizer feed shaft, right (21 x 7)

1шт.

1

815385C1

BAR

- fertilizer feed shaft, right (20 x 6, 18 x 7, and 16 x 8)

1шт.

1

815387C1

GEAR SHAFT

BAR - fertilizer feed shaft, right (24 x 6)

1шт.

112050

PIN,4.76mm OD x 22.23mm L

- square end straight, 3/16 x 7/8 inch

1шт.

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

M76123

WASHER,19/32" x 1 1/4" x .105", Sq Hole

- flat, 19/32 x 1-1/4 x 3/32 inch

1шт.

2

603462R1

TRUNNION

- bevel pinion (1 per bottom plate)

1шт.

3

603463R2

GEAR

- bevel pinion 12 tooth

1шт.

4

F282C

GEAR

GEAR - feed shaft bevel (1 per star wheel)

1шт.

5

602554R11

DRIVE SPROCKET

WHEEL ASSEMBLY - star feed (1 per feed)

1шт.

N62414

PIN,3.96mm OD x 28mm L

- shear

1шт.

6

603451R2

PLATE

- bottom end left (1 used 13 x 7, 16 x 7; 2 used 20 x 6, 24x6,18x7,21 x7,16x8,20x8and16x10)

1шт.

7

3452R2

PLATE - bottom end right (1 used 13 x 7, 16 x 7; 2 used 20 x 6, 24x6,18x7,21x7,16x8,20x8and16x10)

1шт.

8

603453R2

PLATE

- bottom intermediate (11 used 13 x 7; 12 used 16 x 8, 16x10;14used16x7,18x7;16used20x6,20 x8; 17 used 21 x7; 20 used 24x6)

1шт.

180018

CONNECTING LINK

- hex, 1/4 NC x 5/8 inch (2 per plate)

1шт.

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

(1 per drive) Hex, 1/4"-20 x 1", G5

1шт.

-

120585

SCREW,Sl Flat Hd, 1/4" - 20 x 5/8"

- slotted filister head, 1/4 NC x 5/8 inch

1шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, (1 per bolt) 1/4"

1шт.

21801R1

WASHER

- flat, 9/32 x 3/4 x 3/64 inch

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

(1 per bolt) 1/4"-20, G5

1шт.

9

603593R1

BLOCK

- fertilizer feed shut-off

1шт.

10

603457R1

SPACER

- bottom plate (12 used 13 x 7; 15 used 16 x 7; 16 used 18 x 7),"

1шт.

10

815390C1

SPACER

- bottom plate (18 used 20 x 6)

18шт.

10

815391C1

BLOCK

SPACER - bottom plate (14 used 16 x 8; 18 used 20 x 8)

1шт.

10

605153R1

SHIM

SPACER - bottom plate (14 used 16 x 10)

14шт.

10

816715C1

SPACER

- bottom plate (19 used 21 x 7)

19шт.
